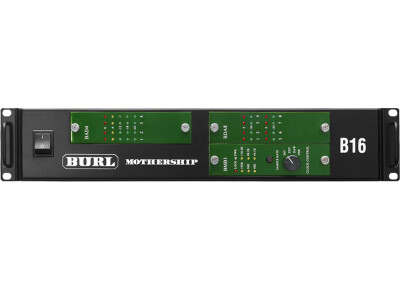

Burl Audio B16 Mothership

• Fabricant : Burl Audio
• Modèle : B16 Mothership
• Catégorie : Convertisseurs A/N N/A
• Fiche créée le : 21/01/2016

16 CHANNEL CONFIGURABLE AD/DA converter in a 2U rack, the little brother of the B80 Mothership

• 2U main chassis
• BMB1 (DigiLink) motherboard
• BMB2 (MADI) motherboard
• BMB3 (Dante) motherboard
• BMB4 (SoundGrid) Motherboard
• 1 BNC Word Clock In
• 2 BNC Word Clock Out
• 3 card slots
• All slots accept AD/DA, AES and BCLK
• 4 channel input cards and 8 channel output analog cards

BAD4 Features:

• 44.1k Hz to 192k Hz, 24 bit, 4 channel ADC
• Exact same circuit path as B2 BOMBER ADC
• Proprietary, high definition, BURL AUDIO BX1
transformer input
• All class-A, discrete transistors signal path
with zero feedback, zero capacitors
• 4 XLR connectivity

BDA8 Features:

• 44.1k Hz to 192k Hz, 24 bit, 8 channel DAC
• Circuit path based on B2 BOMBER DAC
• Latest BURL AUDIO BOPA2, OP-AMP
• All class-A, discrete transistors signal path
zero capacitors
• D-sub DB-25 connectivity

BCLK Features:

• 9 Word Clock Outputs (8 BNC, 1 AES)
• Two independently programmable banks
• Extremely stable, low jitter clock
• Up to 20 Word Clock outputs in 1 unit

BAES4 Features:

• 2 Stereo XLR AES Inputs
• 2 Stereo XLR AES Outputs
• Clocking from BMB, AES IN 1/2 or AES IN 3/4
• Up to 8 channels digital I/O simultaneously in one chassis

Distribué par Floating Point Audio
