- Fabricant : Barefoot Sound
- Modèle : MasterStack12
- Catégorie : Enceintes de monitoring actives
- Fiche créée le : 30/03/2016

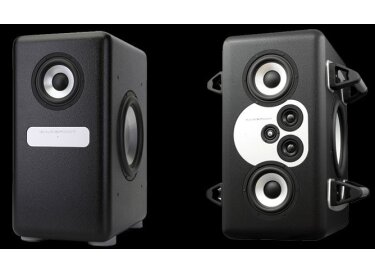

stack d'enceintes de monitoring actives modulaires de 4.5 voies avec woofer et enceinte full range et technologie MEME
| Controls: | Analog/AES3 input select, AES3 L/R channels select, Input level stepped attenuator, Subwoofer level, Emulation voice select |
| Input Impedance: | 25k Ohm |
| Frequency Response: | 18Hz – 50kHz (±3dB) 26Hz – 40kHz (±1dB) |
| Bass Response: | -3 dB @ 18Hz, Q = 0.707 Slope = 12 dB/octave |
| Cabinet: | 180 liters total internal volume, Sealed sub enclosures, Sealed woofer enclosures, Sealed woofer enclosure, Machined aluminum baffle plate, Aluminum subwoofer frames function as lateral cabinet bracing, Long fiber wool acoustic damping throughout. |
| Crossover Frequencies: | 80 / 200 / 800 / 4000 Hz |
| Tweeter: | 1″ ring radiator, Advanced geometry motor, Rear waveguide chamber Amplifier: 250W Hypex |
| Midranges: | 2 x 2.5″ aluminum cones, Advanced geometry motor, +/- 2 mm linear excursion Amplifier: 250W Hypex |
| Woofers: | 3 x 7″ aluminum cones, Advanced geometry motor, +/- 13 mm linear excursion Amplifier: 500W Hypex |
| Subwoofers: | 4 x 12″ aluminum cones, Advanced geometry motor, +/- 25 mm linear excursion Amplifier: 2400W Hypex |
| AC Power Input: | Nominal 115 VAC or 230 VAC selectable |
| Power Consumption: | Idle: 100W, Maximum: 1800W |
| Weight: | Weight: 280 lbs per tower (127 kg) – no handles Shipping: 325 lbs per tower (147 kg) – no handles |
| Dimensions HxWxD: | Cabinet: 63.0 x 14.4 x 21.9 inches (1600 x 366 x 556 mm) Footprint WxD: 23.0 x 21.5 (584 x 546 mm) |
Distribué par Floating Point Audio
»
