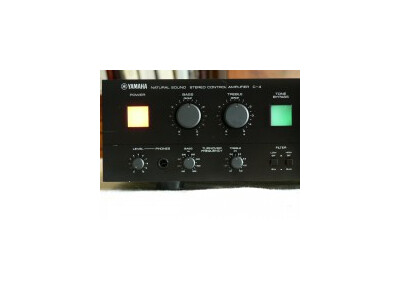

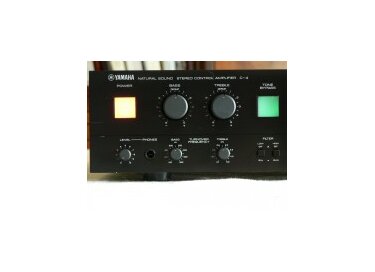

Yamaha C4

• Fabricant : Yamaha
• Modèle : C4
• Catégorie : Autres Produits Hi-Fi
• Fiche créée le : 27/05/2013

Input Sensitivity/Impedance (1kHz):

PHON0-1, 2: 2.5mV/100Ω • 33kn • 47kΩ • 68kΩ · 1OOkΩ Capacitance: 1OO pF 150 pF · 220pF · 330pF 470pF

PHON0-3/MC: 100µV/50Ω

AUX, TUNER, TAPE PB-1, 2: 150mV/47kΩ

Maximum Input Levels

PHON0-1, 2: 285mV at 0.01% T·H·D

PHON0-3/MC: 1OmV at 0.02% T·H·D

AUX, TUNER, TAPE PB-1 . 2: 8.2V at 0.01% T ·H·D

Output Level/Impedance

REC OUT 1, 2: 150mV/180Ω

PRE OUT 1, 2: 2.0V/600Ω

PHONES OUT: 18V (at open load, 0.05 % T·H·D /330Ω

Maximum Output Level (20 to 20,000Hz)

REC OUT 1, 2: 15V 10.01% T·H·D

PRE OUT 1, 2: 10V (0.01% T·H·D

PHONES OUT 18V (at open load)

Total Harmonic Distortion Ratio (20 to 20,000Hz)

PHON0 1, 2 to PRE OUT 1, 2: (Vol. - 30dB) 0.0035% (2V output)

PHON0 3/MC to PRE OUT 1, 2: (Vol. - 30dB) 0.1 % (2V output)

AUX,TUNER,TAPE PB-1, 2 to PRE OUT-1, 2 (Vol. max) 0.0035% (10V output)

PHONES OUT 0.02 % (12mW, 8 Ω)

IM Distortion Ratio

AUX, TUNER, TAPE PB 1, 2 to PRE OUT-1, 2: 0.005% (at 10V output)

Signal to Noise Ratio (IHF A-Network) 85dB (input shorted, rated output level)

PHON0-1, 2: 73dB (input open, cartridge load: 47 k Ω rated output level)

PHON0-3/MC: 77dB (input shorted, rated power)

AUX, TUNER, TAPE PB 1, 2: - TONE BYPASS: ON -106dB - TONE BYPASS: OFF - lOOdB

Residual Noise: 0.2μV

Frequency Response

RIAA Deviation: 20 to 20,000Hz±0.2dB

AUX, TUNER, TAPE PB-1, 2 5 to 100kHz at 0.5dB

Ton, Control Characteristics

Bass Turnover Frequency: 100Hz to 500Hz

Bass Boost/Cut: ± 1OdB at 20Hz

Treble Turnover Frequency: 1kHz to 5kHz

Treble Boost/Cut: ±1O dB at 20kHz

Filter Characteristics

LOW FILTER 15 Hz, 12dB/ oct

HIGH FILTER 1O kHz, 12dB/oct

Channel Separation

PHON0 1, 2 to PRE OUT 1, 2 85dB (Vol. - 30dB 1kHz 5.1 k Ω shorted)

PHON0 3/MC to PRE OUT 1, 2: 85dB (Vol. - 30dB 1kHz on shorted)

AUX, TUNER, TAPE PB 1, 2 to PRE OUT 1, 2: 85dB (Vol. - 30dB 1kHz 5.1 k Ω shorted)

Audio Muting: -20dB

GENERAL

Power Supply

U.S.A. and Canadian Model 120V AC, 60Hz

General Model: 110/ 120/ 220/ 240V AC, 50/60Hz

North European Model: 220V, 50Hz

European Model: 110/ 120/ 220/ 240V AC. 50Hz

British & Australian Models: 240V AC, 50Hz

Power Consumption: 50W

AC Outlets (General Model only)

SWITCHED: 400W MAX. Total

UNSWITCHED: 200W MAX. Total

Weight

European & General Models: 8.7kg (19 lb 3 oz)

Other Area Models: 8.6kg (18 lb 15 ozl

Dimensions (W x H x D) 435x116x376mm (17-1/8") x (4-1 / 2") x (14-3/4" )

Distribué par Yamaha Music Europe
