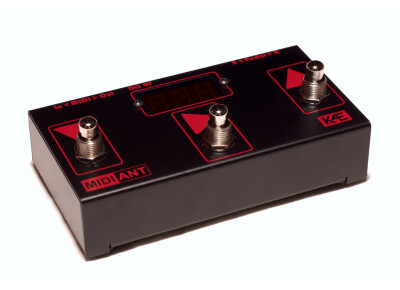

KAE Systems MIDI Ant

• Fabricant : KAE Systems
• Modèle : MIDI Ant
• Catégorie : Interfaces MIDI
• Fiche créée le : 09/02/2016

compact universal MIDI interface

• Up to 256 freely configurable program items: any PC message + optional leading LSB and MSB CC bank select messages with any value. Address every preset in every possible bank, in every device!!!
• Displayed program numbers are completely independent from transmitted PC messages. Gather your favorite presets in one sequential list!
• Fully customizable view of the program number. Completely emulate the screen of your favorite MIDI device!
• Program number can be changed also by external PC message. You can use MIDI Ant also as program visualizer!
• Highly precise generation of MIDI Clock period (tap/tempo control) for your favorite delay pedal
• 3 types of tempo control: ‘hard-coded’, manual or external (by expression pedal)
• Individually assignable ‘hard-coded’ tempo to each program item
• Generated MIDI Clock period between 20 and 300 ВРМ with 1 ВРМ increments
• Software swappable left and right buttons
• Ultra-bright 3-digit red LED display
• 2 high-quality Neutrik® ¼” jacks for external expression pedals, freely assignable to CC messages or tempo control
• An ‘Auto-range’ feature for both expression pedals: always giving full-range values, regardless of the end positions of the internal potentiometers
• Phantom-powered from spare pins on the MIDI Out socket
• Intelligent switching 2.5mm DC power jack with center negative pin, permitting either power supply or phantom power at a time.
• Reverse polarity protection
• Sturdy metal case
• Soft-action (click-less) footswitches
• Easily configurable by a free Microsoft Windows® application
• Weight: 416 g
• Dimensions: 146 x 83 x 57 mm
