Dave Smith Instruments Prophet Rev2
+

Prophet Rev2, Clavier synthétiseur analogique de la marque Dave Smith Instruments.

Neuf à partir de 2 222 € prix moyen : 2 222 €

Fiche technique Dave Smith Instruments Prophet Rev2

  • Fabricant :Dave Smith Instruments
  • Modèle :Prophet Rev2
  • Catégorie :Claviers synthétiseurs analogiques
  • Fiche créée le :19/01/2017

Le Prophet Rev2 est un Synthétiseur analogique polyphonique de 16 voix. Il est sorti en 2017.

OSCILLATORS

  • 2 digitally controlled analog oscillators (DCOs) per voice with selectable sawtooth, triangle, saw/triangle mix, and pulse waves (with pulse-width modulation)
  • Glide (portamento): separate rates per oscillator
  • White noise generator
  • Analog VCAs
  • Hard sync

FILTERS

  • 1 analog Curtis low-pass filter per voice, selectable 2- and 4-pole operation (self-resonating in 4-pole mode).

ENVELOPES

  • 3 envelope generators: filter, VCA, and assignable (four-stage ADSR + delay); Envelope 3 can loop.

SEQUENCER

  • 16 x 4 gated step sequencer

LFOS

  • 4 LFO’s with key sync per LFO

MODULATION

  • 4 x 2 modulation matrix with 20 mod sources and 43 mod destinations

ARPEGGIATOR

  • Programmable arpeggiator with up, down, up+down, random, assign modes
  • Re-latching arpeggiation

CONTROLS

  • 5-octave keyboard with semi-weighted action, velocity, and aftertouch
  • 52 knobs and 20 buttons enable deep and comprehensive editing with little to no menu diving.
  • Spring-loaded pitch wheel and assignable mod wheel

MEMORY

  • 256 fully editable Programs (2 banks of 128) with 2 Layers (2 separate sounds) in each Program

IN/OUT

  • MIDI In, Out, Thru, and Poly Chain
  • Main stereo audio output: 1/4″ unbalanced
  • Output B stereo audio output: 1/4″ unbalanced
  • Sustain pedal input: accepts normally on or normally off momentary footswitch.
  • Pedal/CV input: responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages).
  • Headphone output: 1/4″ stereo phone jack.

POWER

  • Includes power supply for 110V – 240V AC operation (13-15 VDC, 600 mA) and operation manual.

PHYSICAL SPECS

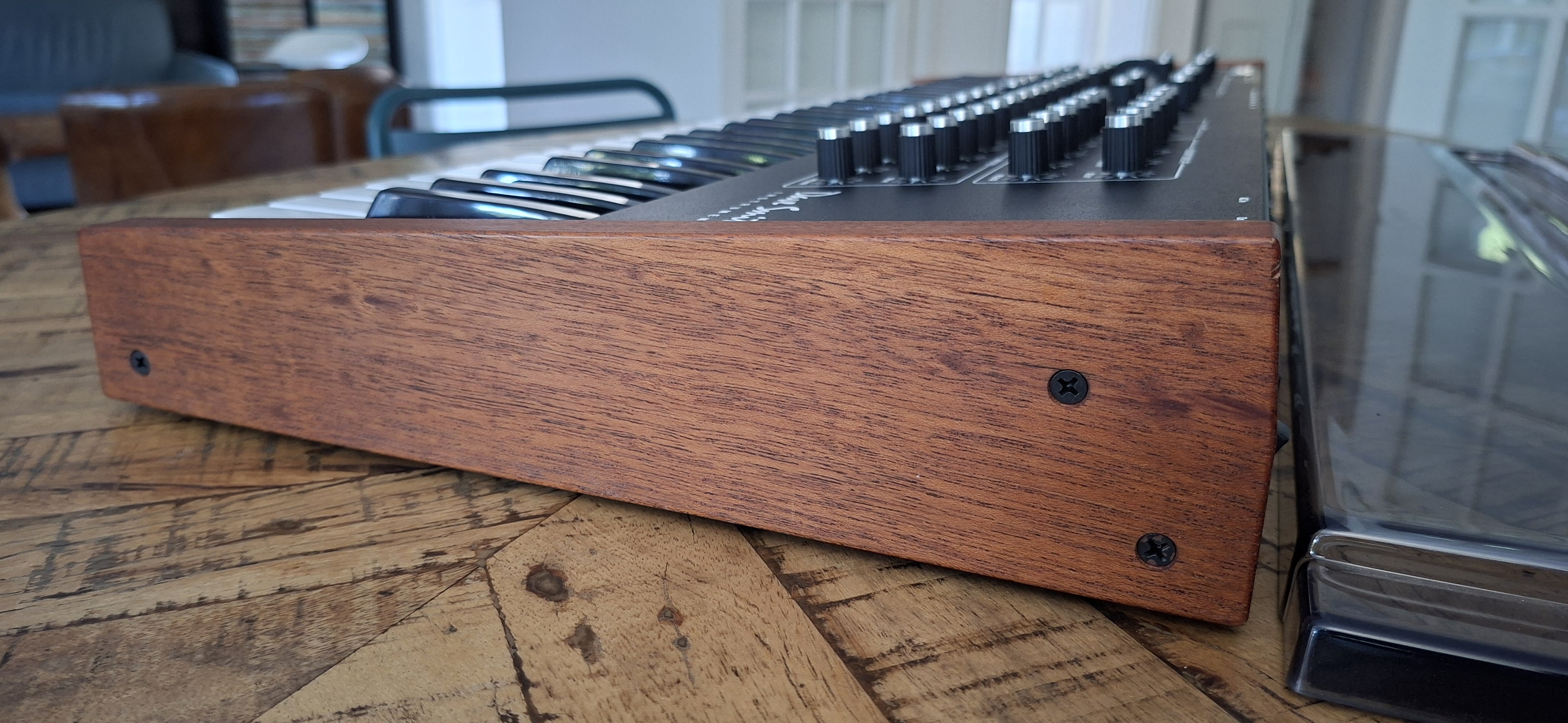

  • Oiled African mahogany wood end panels
  • Dimensions: 12.70″ (32.26 cm) W x 35.12″ (89.20 cm) L x 3.80″ (9.65 cm) H (2.30″ at front edge; the feet account for 0.25″ of the total height)
  • Weight: 20.5 lbs. (9.3 kg)

Distribué par mesi

»

Acheter neuf Dave Smith Instruments Prophet Rev2

Pourlesmusiciens.com
(40 avis)
Prophet rev2-16 2 222 €
Star's Music
(164 avis)
Prophet rev2-16 2 222 €
Espace Claviers
(41 avis)
Prophet Rev2 16 voix 2 222 €
Univers Sons
(68 avis)
Prophet REV2 16 2 222 €
Woodbrass
(321 avis)
Rev2 16 Voix 2 222 €

News Dave Smith Instruments Prophet Rev2

Le DSI Prophet Rev2 de 16 voix arrive

Le DSI Prophet Rev2 de 16 voix arrive

20 Publiée le 19/05/17
Dave Smith Instruments est en train d’expédier la version de 16 voix de son dernier synthétiseur analogique Prophet Rev2.

Images Dave Smith Instruments Prophet Rev2

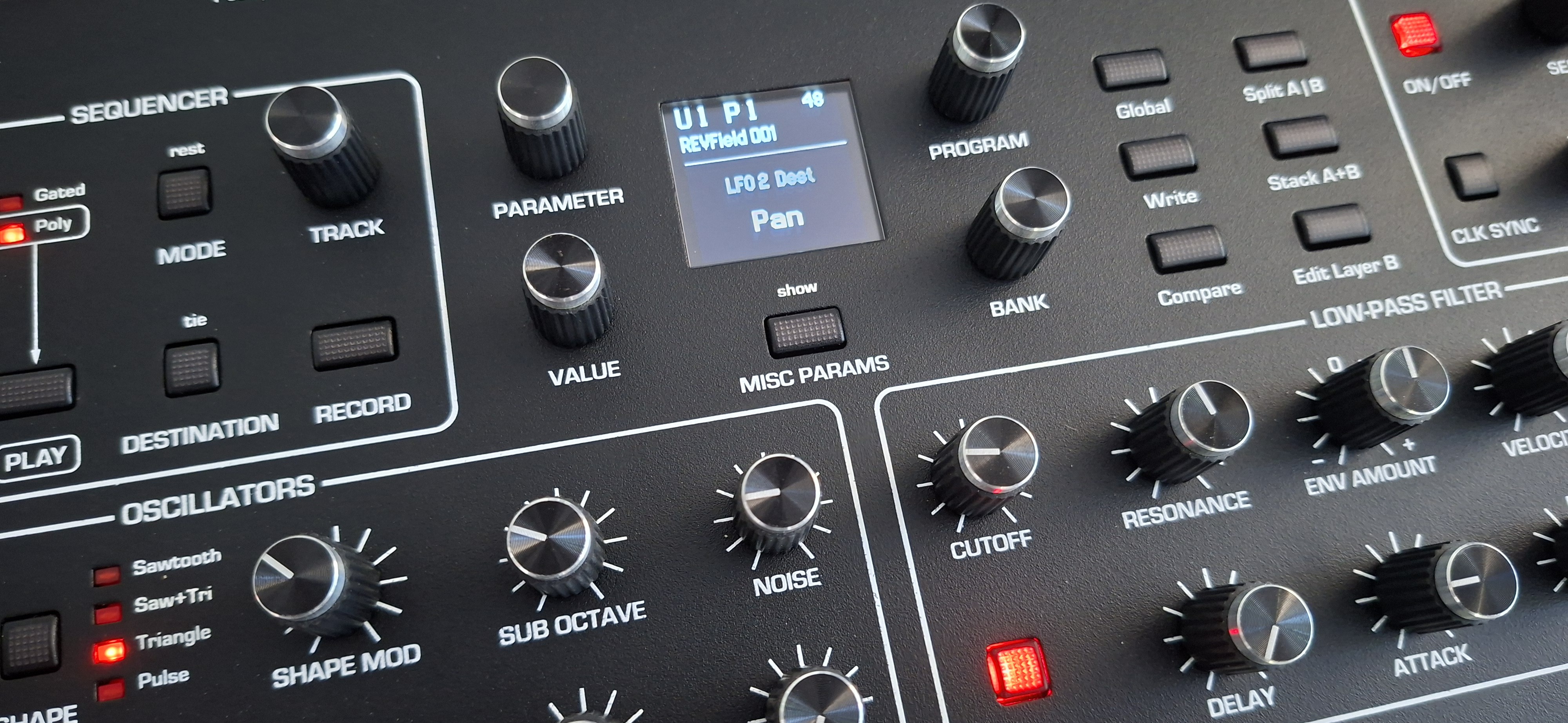

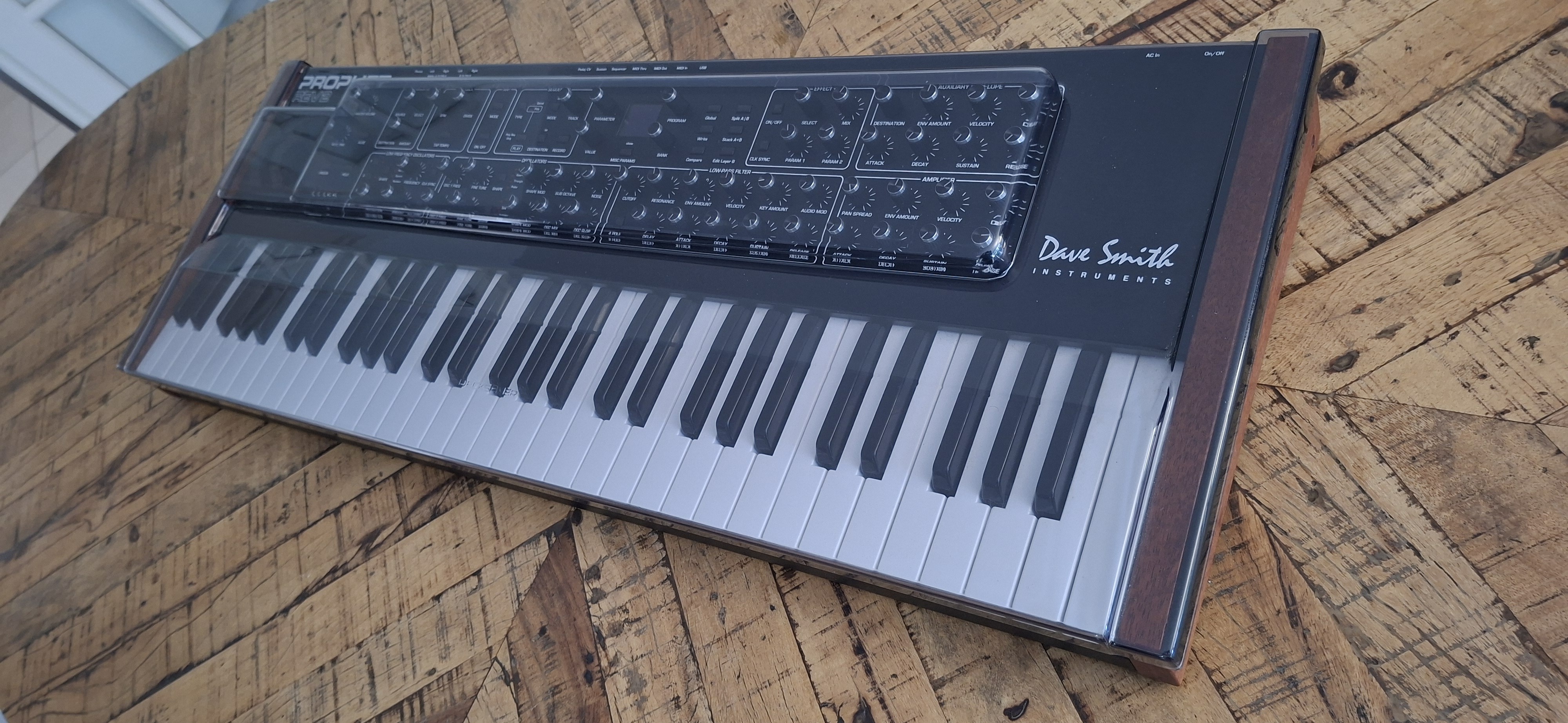

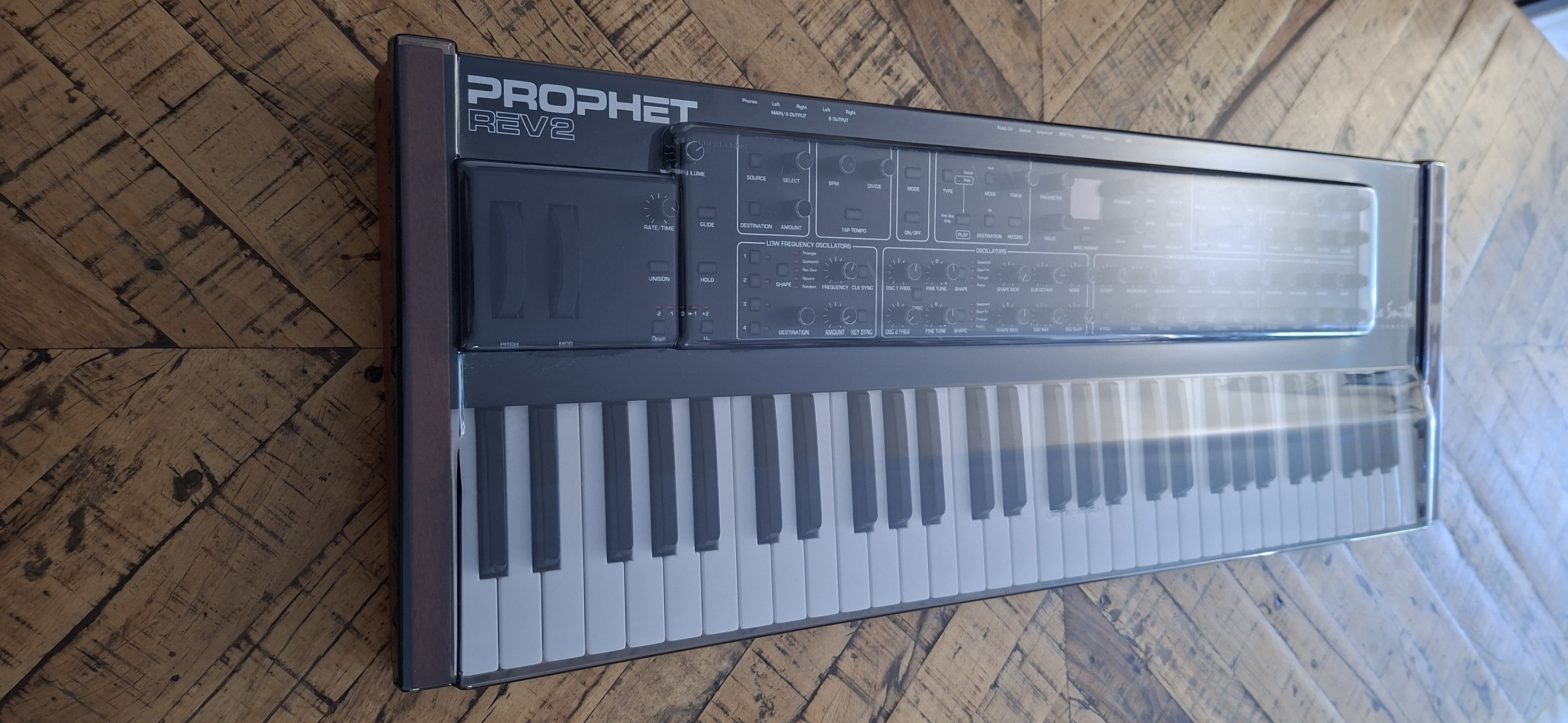

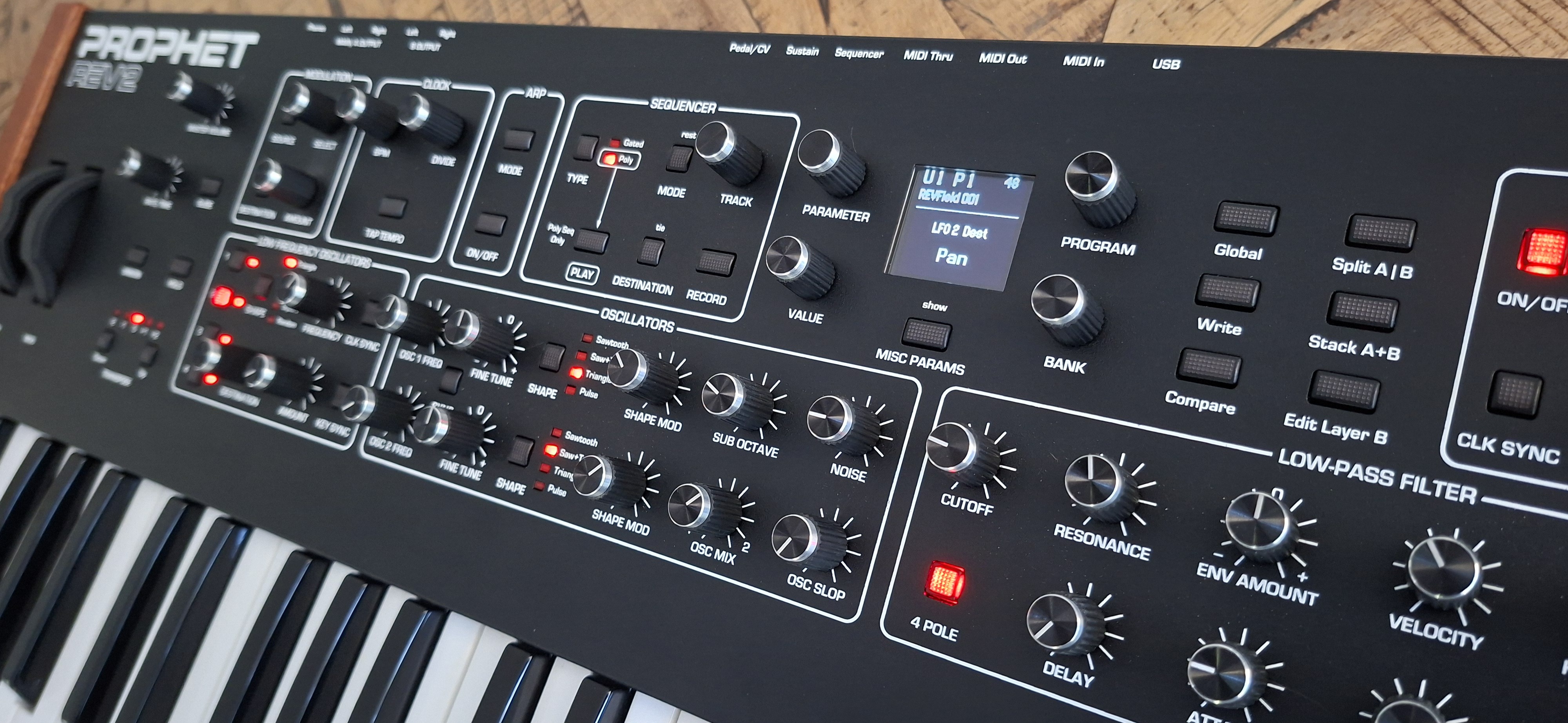

  • Dave Smith Instruments Prophet Rev2
