- Fabricant : Aps - Audio Pro Solutions
- Modèle : 3way
- Catégorie : Enceintes de monitoring actives
- Fiche créée le : 29/05/2011

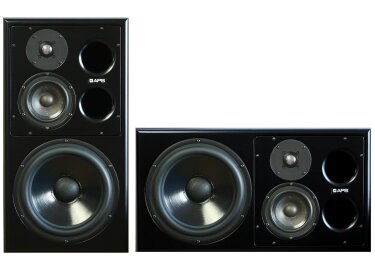

Soon, 3way active studio monitor will take place on top of APS offer being the result of our experience acquired in designing process of active studio monitors. It’s designed for medium/far field use. 3way’s balanced, free from colouration, dynamic and full of detail sound, high SPL form a unique value, which is quite rare at present in the pro-audio industry. It’s perfect choice for all discerning users who work in big studios.
3way is our response to a question asked frequently these days by lots of professionals, they ask about high class three-way active studio monitor at reasonable price.
Advanced design of electronic modules incorporates: precise regulators of high, medium and low frequencies, active crossover made of high class electronic components, three class A/B power amplifiers designed from the scratch: 100 Watts for tweeter, 100 Watts for midrange and 300 Watts for woofer. High quality loudspeaker drivers made by Norwegian company SEAS as well as extremely rigid construction of the cabinet, all together designed to meet expectations of modern pro audio industry.
3way active studio monitor, works perfectly placed horizontally as well as vertically.
| Field Monitor | Medium / Far |
|---|---|
| Type |
Active – three power amplifiers:
|
| System | Three-way |
| Crossover Frequency | 300Hz and 4000Hz |
| Dimensions: Height x Width x Depth | 60 cm x 32 cm x 56 cm |
| Free Field Frequency Response | +/- 2 dB: 25 Hz - 30 kHz |
| SPL in Free Field @ 1m | RMS: Peak: |
| Weight | 45 kg |
| Loudspeakers |
|
| Bass Loudspeaker | Ø 26 cm Diaphragm: cellulose, surround: rubber |
| Tweeter Loudspeaker Midrange Loudspeaker |
Ø 2.5 cm in two versions : fabric dome or titanium dome Ø 15 cm Diaphragm: cellulose, surround: rubber |
| Amplifiers |
|
| Bass Power Amplifier |
300 W RMS @ 8Ω |
| Tweeter and Midrange Power Amplifiers | 100 W RMS @ 6Ω |
| Total Harmonic Distortions | 0.005 % – PO = 5 W, f = 1 kHz 0.1 % max – PO = 0.1 up to 50 W, f = 20 Hz up to 20 kHz |
| Signal To Noise Ratio | 103.5 dB – weighted by A curve 101 dB – in band of 20 Hz up to 20 kHz |
| Input Voltage Level for 100 dB SPL in Free Field @ 1m | 0 dBu (i.e. 0.775 V) – calibrated regulators in 0 dBu, 0 dB positions |
