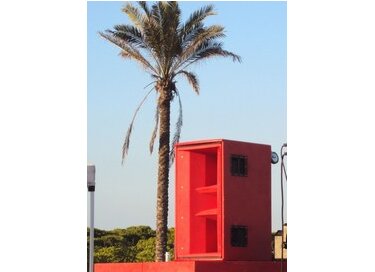

Annonces HL 212 H2 / 3 way Point Source Horn System
Alerte nouvelle annonceImages
Fiche technique
- Fabricant : Clear Sound
- Modèle : HL 212 H2 / 3 way Point Source Horn System
- Catégorie : Enceintes de sono passives
- Fiche créée le : 10/07/2012
TRIAX HORN LOADED CONCERT SYSTEM / Waterproof!!!
Features:
3-way on-axis horn loaded point source loudspeaker system
Revolutionary new, patented 2" Coaxial Compression Driver
Precise directivity
Very high SPL (151 dB peak)
Specifications:
Type 3-way point source horn system
Application High level medium / long throw
Frequency response 150 Hz - 21 kHz (- 3 dB)
Power handling AES 1200 W-mid, 150 W-high-mid, 70 W-high
Sensitivity 112 dB, 1 W / 1m
Max. SPL peak 145 dB continious, 151 dB peak
Dispersion 60° x 40°
Components
High frequency 2" coaxial driver
Low frequency 2 x 12" horn loaded, 4" VC
Crossover point 800 Hz (Active), 6.3 kHz (Passive)
Nominal impedance low-mid 4 Ohm, high/mid 8 Ohm
Input connectors 2 x Neutrik™ NL4MP
Enclosure shape 15 mm plywood
Finish Textured red & black Paint
Dimensions 560 x 950 x 660 mm (w,h,d)
Net weight 85kg
