- Fabricant : Yorkville

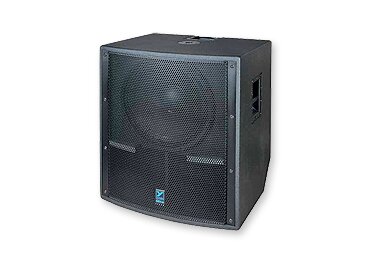

- Modèle : LS 808 B
- Catégorie : Subwoofers passifs
- Fiche créée le : 25/08/2011
| System Type | Rear Horn-Loaded Subwoofer |
| Active or Passive | Passive |
| Program Power (Watts) | 1400 Watts (2800 Peak / 700 Continuous) |
| Nominal Impedance (Ohms) | 8 |
| Sensitivity (dB @1Watt/1m) | 105 |
| Max SPL (dB) | 139dB Peak (136dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 45 - 180 |
| LF Driver(s) | 18-inch, Ceramic Magnet w/4-inch voicecoil |
| Inputs - 1/4" Jacks | 2 |
| Inputs - Speakon 4-pin | 2 |
| Other Controls / Features | Speakon™ connectors feature a configuration switch which allows instant reversal of Speakon™ jack pinouts for easy single wire hook-up using optional four wire Speakon™ cables. |
| Corners | Black Steel |
| Bar Handles | 2 Side |
| Pole Mount Adapter (1 3/8"-3.5cm) | 1 Top |
| Enclosure Materials | 15mm (5/8inch) 11-ply Russian Birch |
| Grille | Heavy gauge perforated metal |
| Covering / Finish | Black Ozite (Carpet) |
| Optional Covering / Finishes | Black Ultrathane Paint (LS808B) |
| Dimensions (DWH xbackW, inches) | 23 x 27.5 x 32 |
| Dimensions (DWH xbackW, cm) | 58.4 x 70 x 81.3 |
| Weight (lbs/kg) | 116.6 / 52.9 |
