Fiche technique
- Fabricant : Flame Audio
- Modèle : FX16
- Catégorie : Modules d'effets pour synthés modulaires
- Autres dénominations : fx 16

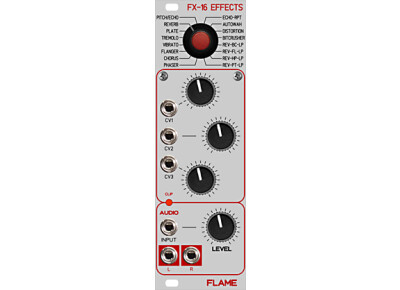

The Flame "FX-6” module is a small low cost DSP-based (Spin semiconductors FV-1, 24bit ADC/DAC) multi effect module, designed for small mobile euro racks. 16 different multi effect programs are available. There are three knobs with additional CV inputs to change the effect parameters. Audio mono input and stereo output levels are adjusted for modular rack levels. The input can be attanuated and is protected against level peaks. The outputs are buffered by an op-amp. One red LED indicates clipping.
List of multi effect programms
PITCH/ECHO (Pitchshifter-Echo)
REVERB
PLATE
TREMOLO (Reverb-Tremolo)
VIBRATO (Reverb-Envelope Vibrato)
FLANGER (Reverb-Flanger)
CHORUS (Reverb-Chorus)
PHASER (Reverb-Phaser)
ECHO-REPEAT (Stereo Ping Pong Delay)
AUTO-WAH (Reverb-Envelope Lowpass)
DISTORTION (Lowpass-Distortion-Reverb)
BITCRUSHER (Reverb-Bitcrusher-Lowpass)
REV-FL-LP (Reverb-Flanger-Lowpass)
REV-HP-LP (Reverb-Highpass-Lowpass)
REV-PT-LP (Reverb-Pitchshifter-Lowpass)
Current consumption: ca. + 55mA / - 2mA
Size: Euro rack format 3U / 8HP 40,3x128,5mm
