Fiche technique
- Fabricant : Electro-Voice
- Modèle : Q44 MK2
- Catégorie : Amplis de sono 2 canaux
- Poids du colis : 17.1 kg
- Autres dénominations : Q44-II, q44 2, q44 ii, q44v2
Features
- Outstanding value and performance for club and mobile systems
- Dynamic headroom for all real-world applications
- 650 W per channel (2 Ω)
- Class-AB design
- XLR pass-though input connections
- Easy connection to bi-amped loudspeakers
- Switchable LPN filter for extra tonal fundamentals and "kick"
- Protective low-cut for systems without subwoofers
- Built-in dynamic limiters
- Complete protection package

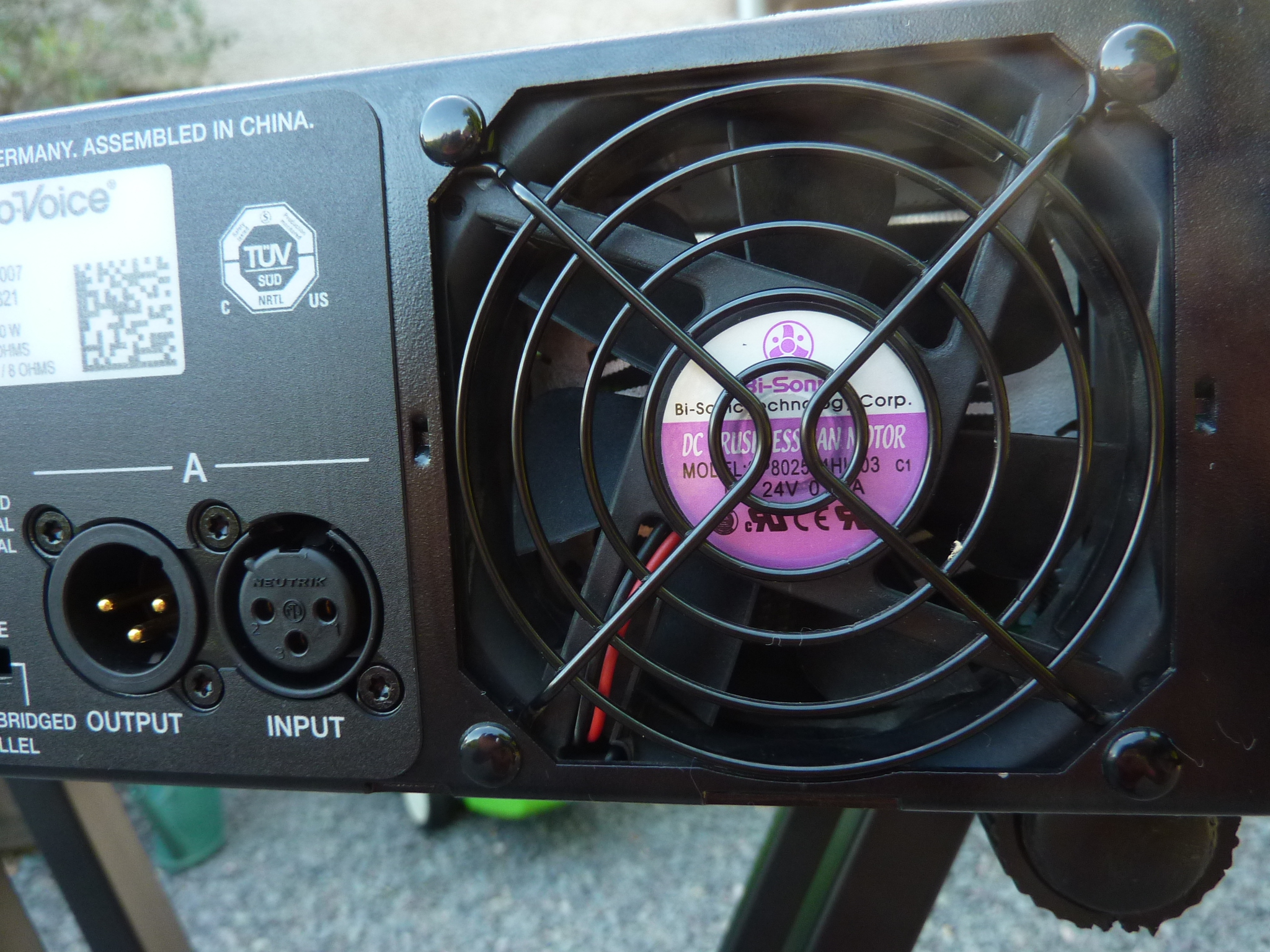

- Three-stage front-to-rear fans
Technical Data
| Weight Net | 12.6kg (27.78 lbs) |
| Depth | 421.5mm (16.59") |
| Width | 483mm (19.02") |
| Height | 88.1mm (3.47") |
| Amplifier Gain | 32dB |
| Channels | 2 |
| Continuous Rated Power (1 kHz, THD 1%) 2Ω | 650Watts |
| Continuous Rated Power (1 kHz, THD 1%) 4Ω | 450Watts |
| Continuous Rated Power (1 kHz, THD 1%) 8Ω | 270Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω | 400Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω | 200Watts |
| Cooling | Front-to-Rear, 3-stage fans |
| DIM 30 | 0.05% |
| Electronics Type | Amplifier |
| Frequency Response (-3 dB) | 10 Hz - 40 kHz (±1 dB) |
| Impedance | 2/4/8Ω |
| Input Impedance (Balanced) | 20kΩ |
| Input Sensitivity | +2.2 dBu |
| Intermodulation Distortion (SMPTE) | 0.1% |
| Maximum Bridged Output 4Ω | 1300Watts |
| Maximum Bridged Output 8Ω | 900Watts |
| Maximum Input Voltage | +21 dBu (8.69 Vrms) |
| Network Control (IRIS-Net) | No |
| Signal-to-Noise Ratio (A-weighted) | 106dB |
| Slew Rate | 25V/µs |
| Topology | Class-AB |
| Total Harmonic Distortion | 0.03% |
