Fiche technique
- Fabricant : Electro-Voice

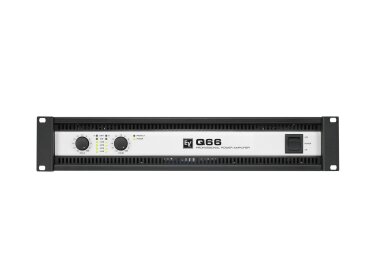

- Modèle : Q66 MKII
- Catégorie : Amplis de sono 2 canaux
- Autres dénominations : Q66-II, q66 ii, q66 2, q66 mk2. q66 v2
Features
- Outstanding value and performance for clubs, mobile and more
- Dynamic headroom for all real-world applications
- 900 W per channel (2 Ω)
- Class-AB design
- XLR pass-though input connections
- Easy connection to bi-amped loudspeakers
- Switchable LPN filter for extra tonal fundamentals and "kick"
- Protective low-cut for systems without subwoofers
- Built-in dynamic limiters
- Complete protection package
- Three-stage front-to-rear fans
Technical Data
| Weight Net | 14.8kg (32.63 lbs) |
| Depth | 421.5mm (16.59") |
| Width | 483mm (19.02") |
| Height | 88.1mm (3.47") |
| Amplifier Gain | 32dB |
| Channels | 2 |
| Continuous Rated Power (1 kHz, THD 1%) 2Ω | 900Watts |
| Continuous Rated Power (1 kHz, THD 1%) 4Ω | 600Watts |
| Continuous Rated Power (1 kHz, THD 1%) 8Ω | 380Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω | 500Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω | 250Watts |
| Cooling | Front-to-Rear, 3-stage fans |
| DIM 30 | 0.05% |
| Electronics Type | Amplifier |
| Frequency Response (-3 dB) | 10 Hz - 40 kHz (±1 dB) |
| Impedance | 2/4/8Ω |
| Input Impedance (Balanced) | 20kΩ |
| Input Sensitivity | +3.1 dBu |
| Intermodulation Distortion (SMPTE) | 0.1% |
| Maximum Bridged Output 4Ω | 1800Watts |
| Maximum Bridged Output 8Ω | 1200Watts |
| Maximum Input Voltage | +21 dBu (8.69 Vrms) |
| Network Control (IRIS-Net) | No |
| Signal-to-Noise Ratio (A-weighted) | 107dB |
| Slew Rate | 26V/µs |
| Topology | Class-AB |
| Total Harmonic Distortion | 0.03% |
