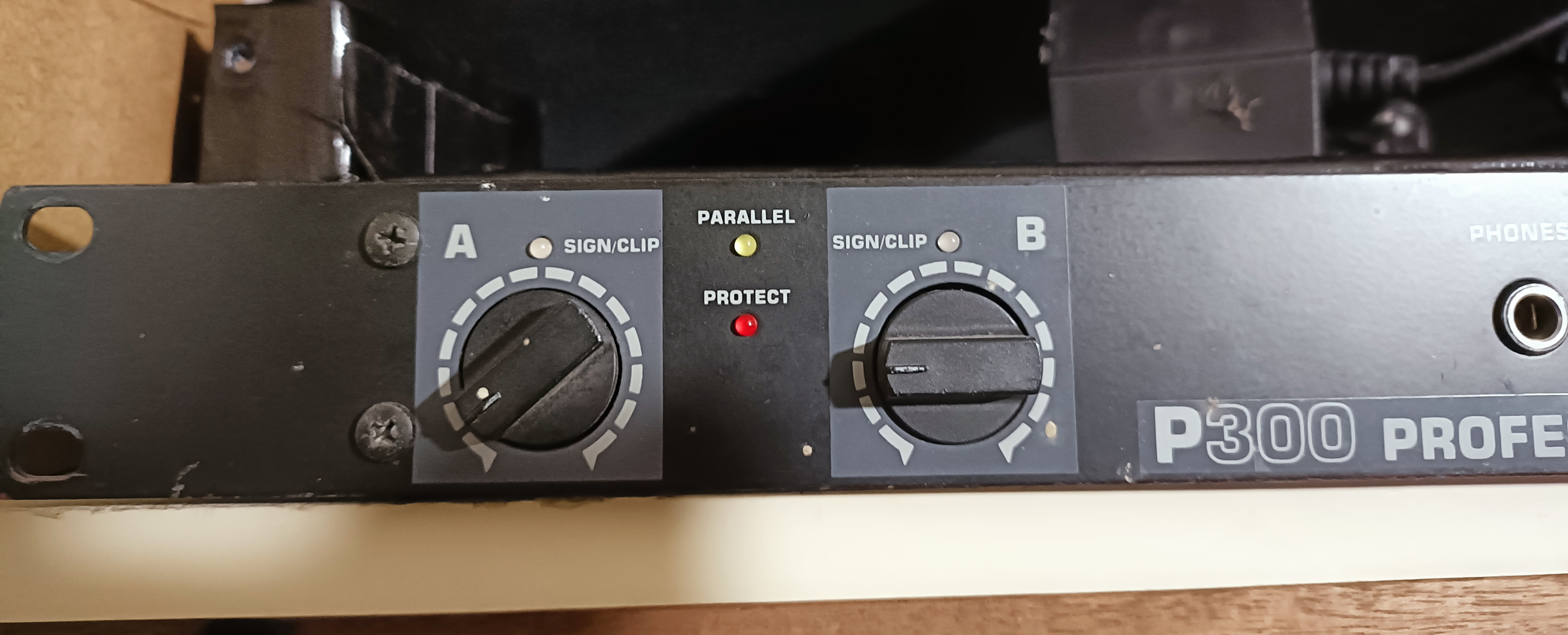

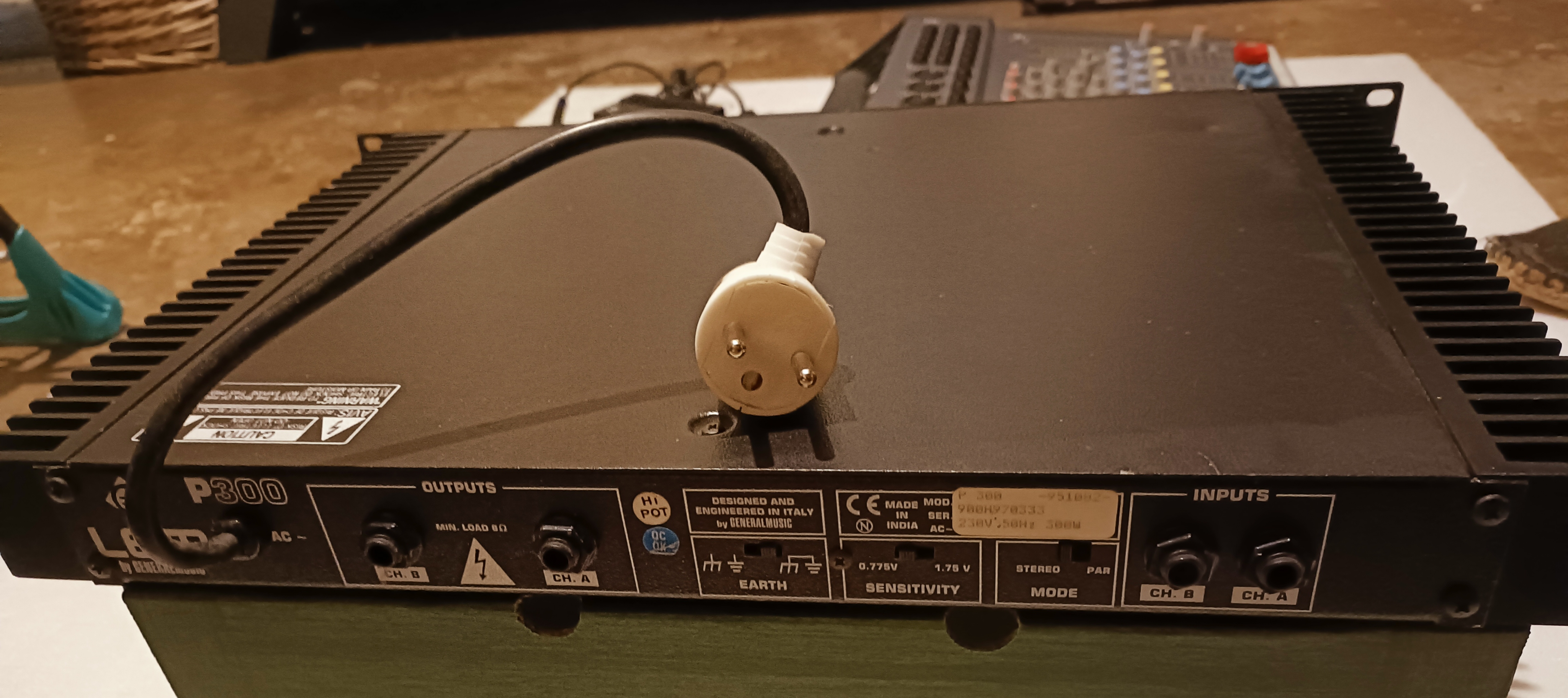

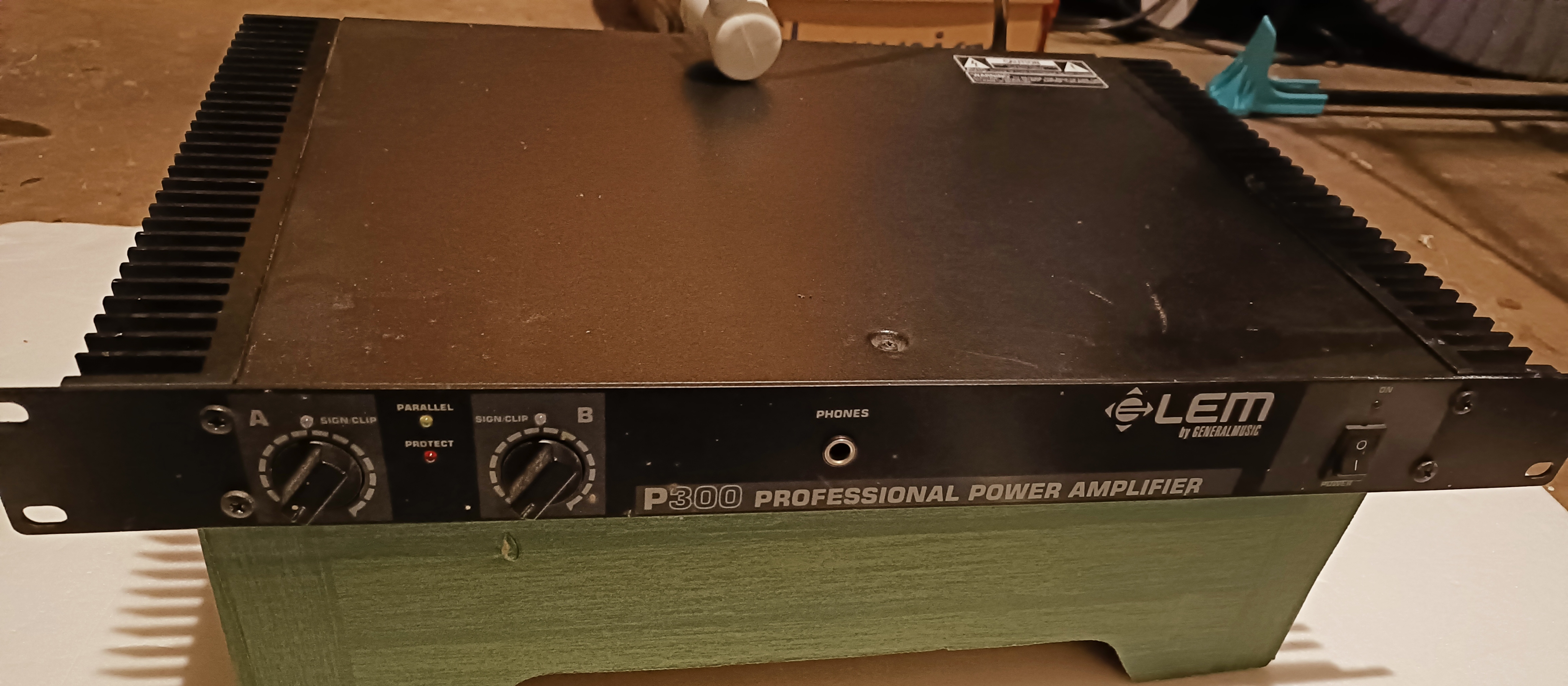

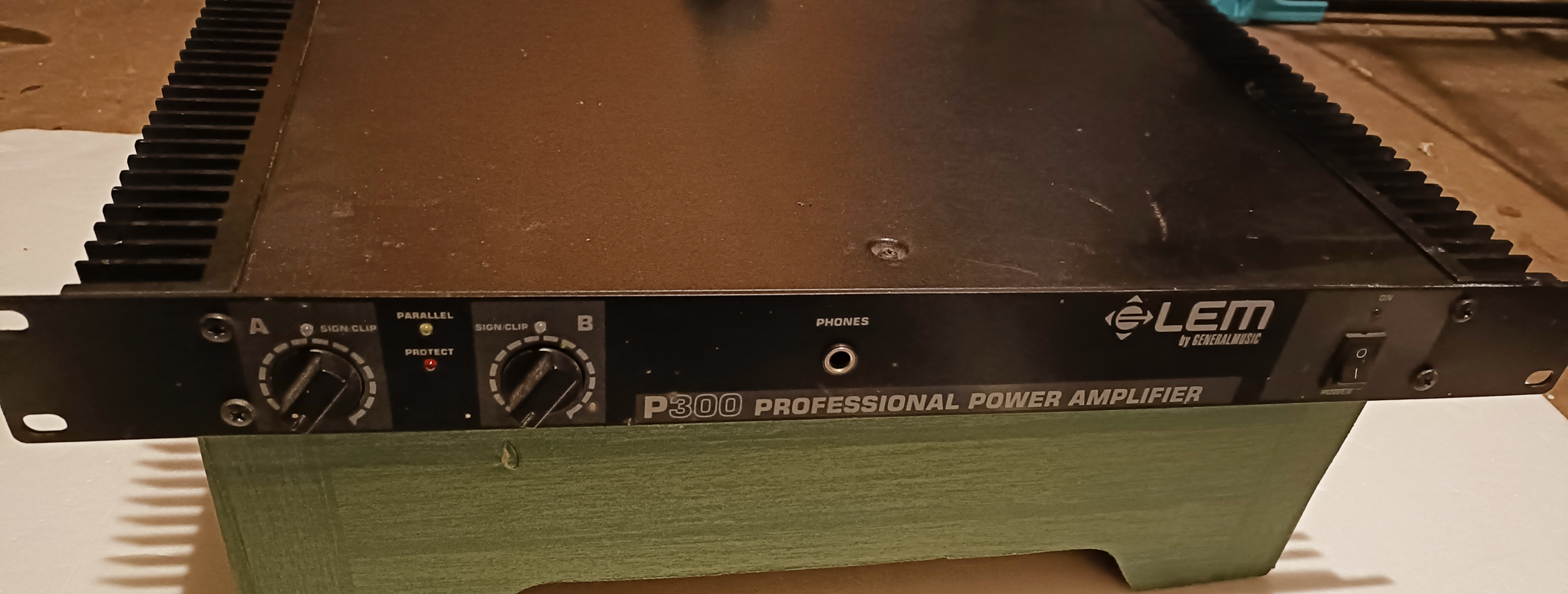

LEM P300

Dimensions: (WxHxD) 483x44x310mm (1U)
Weight: 8Kg
Power Requirements: (230Vac±10% 50Hz) 300VA
Output Power: (8
Ω stereo/parallel) 2x 150Watts
Max. Undistorted Out: (8
Ω stereo/parallel) 98Vpp
Input Sensitivity: (constant sensitivity) 0.775Vrms (0dB)
(constant gain) 1.75Vrms (+7dB)
Input Impedance: (balanced) 30KΩ
(unbalanced) 15KΩ
Voltage Gain: (constant sensitivity) 33±0.5dB
(constant gain) 26±0.5dB
Slew Rate: 25V/µS
Damping Factor: (8Ω stereo/parallel) >400
Frequency Response (-0.2dB) 20Hz÷20KHz at Full Power: (-3dB) 10Hz÷60KHz
IMD: (SMPTE 60Hz/7KHz 4:1) <0.1%
THD: (THD+N) <0.1%
S/N Ratio: (unweighted) >95dB
Crosstalk: (1KHz) >70dB
