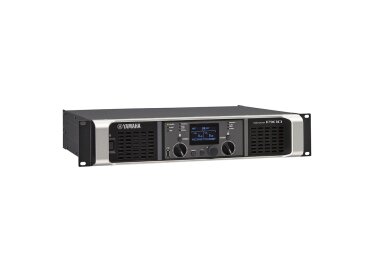

Yamaha PX10

Name: PX10
Brand: Yamaha
SKU: 252874

Ampli de sono 2 canaux de la marque Yamaha appartenant à la série PX

Écrire un avis ou Demander un avis

Présentation du produit Présentation

Avis

Comparateur de prix 8 8

Petites annonces

Forums 1 1

Actu 1 1

Sommaire - accès rapide

News (1)
Images (9)
Fiche technique (1)

Acheter neuf Yamaha PX10

Distri Scenes En stock / Livré en 48h 1 068,00 €
Terre de Son En stock / Livré en 24h 1 189,00 €
Thomann En stock / Livré en 48h 1 198,00 €
Music Store En stock / Livré en 48h 1 198,00 €
Energyson Pas de stock / Livré en 48h 1 079,00 €

Annonces PX10

Alerte nouvelle annonce

Forums Yamaha PX10

Amplis de puissance Yamaha PX

News

Amplis de puissance Yamaha PX

Yamaha complète son offre d’amplis de puissance pour la sono professionnelle avec les quatre modèles de la série PX.

03/06/16 8

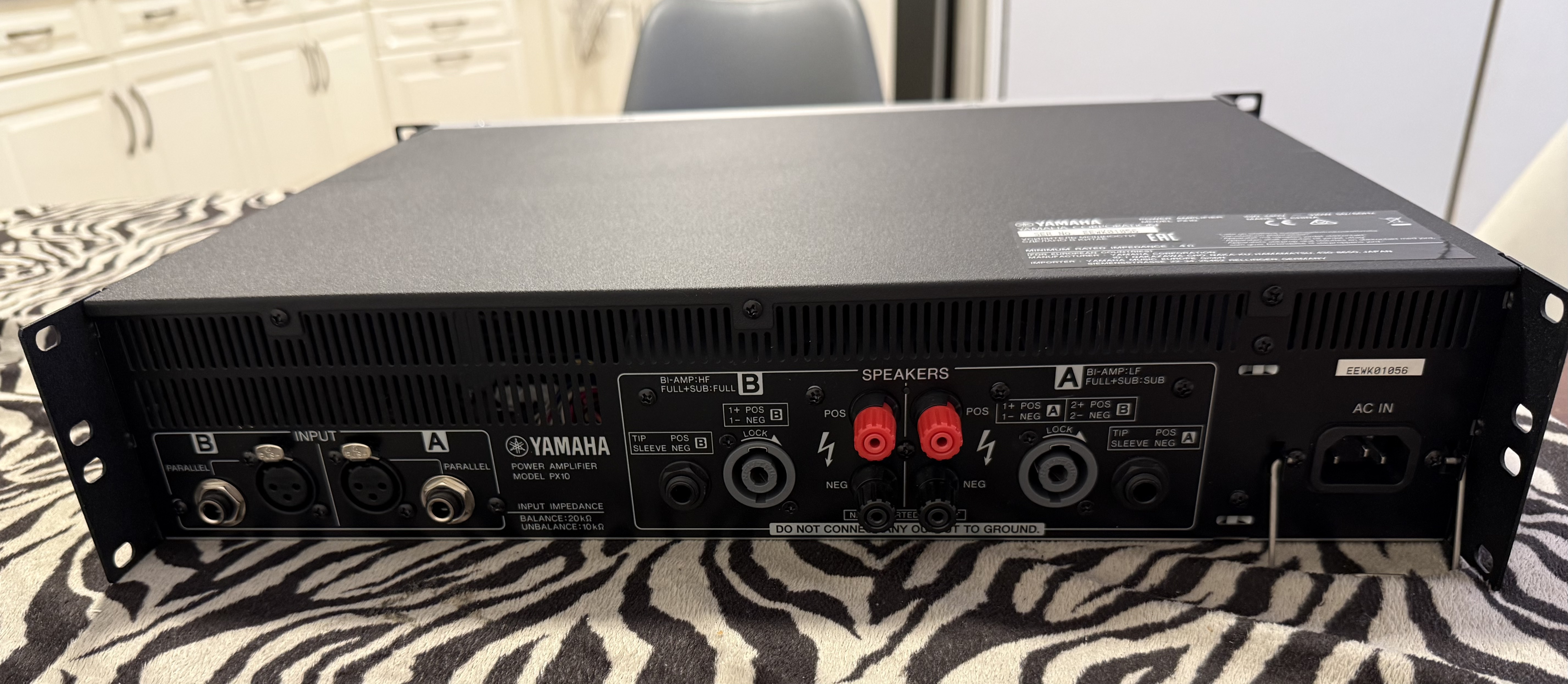

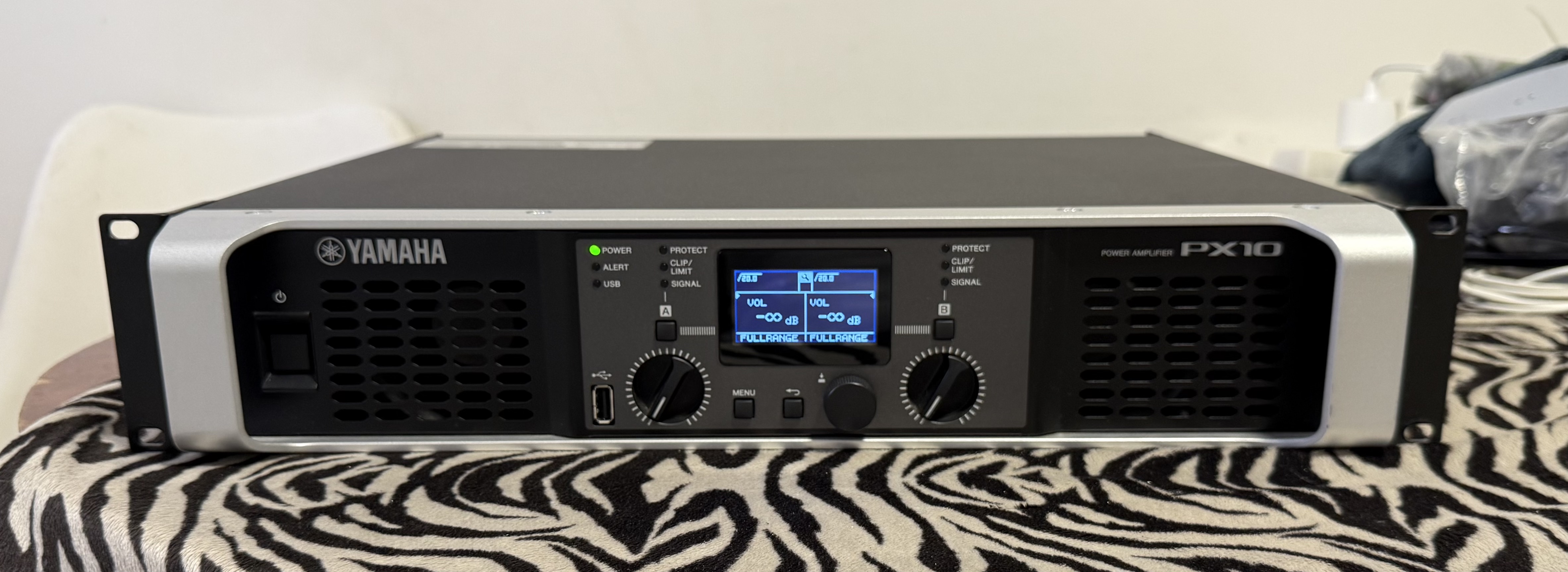

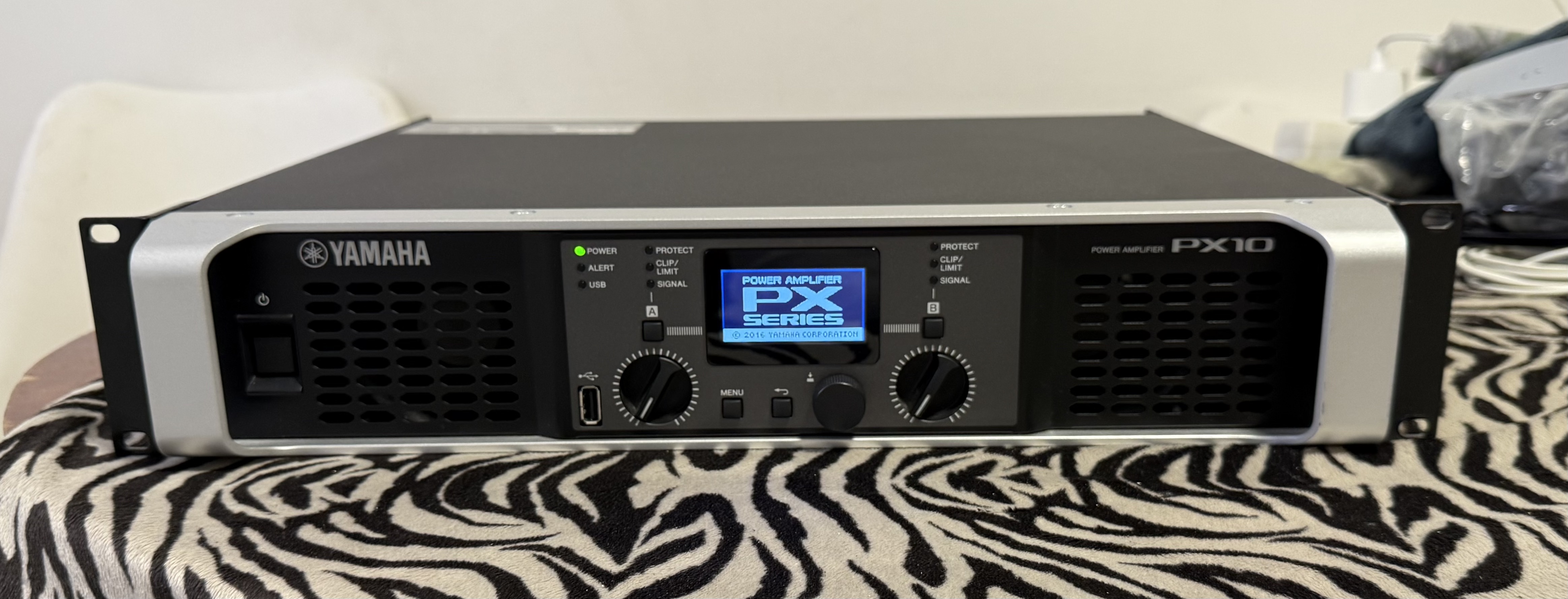

Images

Voir les 9 photos du Yamaha PX10

Fiche technique

Fabricant : Yamaha
Modèle : PX10
Série : PX
Catégorie : Amplis de sono 2 canaux
Poids du colis : 9.6 kg
Fiche créée le : 02/06/2016

Amplificateur de puissance 2x1000W sous 8ohms

2x 1000W sous 8Ω
2x 1200W sous 4Ω
Nouvelle amplification classe D avec circuit LSI customisé
Correcteurs paramétriques, crossover, filtres, delais, et limiteurs intégrés
Preset pour enceintes Yamaha
Fonctions de sauvegarde et sécurité

Caractéristiques techniques 100V models

Output power; 1kHz Non-clip 20msec Burst Both channels driven	8Ω	1000W x 2
	4Ω	1200W x 2
	2Ω	700W x 2

120V models

Output power; 1kHz Non-clip 20msec Burst Both channels driven	8Ω	1000W x 2
	4Ω	1200W x 2
	2Ω	700W x 2

220V-240V models

Output power; 1kHz Non-clip 20msec Burst Both channels driven	8Ω	1000W x 2
	4Ω	1200W x 2
	2Ω	700W x 2

General specifications

Sampling frequency rate	Internal	48kHz
A/D D/A Converters		AD/DA: 24-bit linear, 128 times over sampling
Total harmonic distortion		0.1% (1kHz, 10W), 0.3% (1kHz, Half power)
Frequency response		±1.0dB (1W, 8Ω, 20Hz to 20kHz)
S/N ratio		101dB (A-weighted, 8Ω, Gain setting = +14dBu)
Crosstalk		Less than -60dB (Half Power, 8Ω, 1kHz, Vol max input 150Ω shunt)
Voltage Gain/Sensitivity	8Ω Volume max	32.0dB/+9.3dBu (Gain setting: 32dB), 26.0dB/+15.3dBu (Gain setting: 26dB), 37.3dB/+4dBu (Gain setting: +4dBu), 27.3dB/+14dBu (Gain setting: +14dBu)
Maximum input voltage		+24dBu
Input impedance		20kΩ (Balance), 10kΩ (Unbalance)
I/O Connectors	Speaker output ports	Neutrik speakON NL4 x2, Binding post x2 pairs, 1/4" PHONE(TS) x2
	Line Input	XLR-3-31 x2, 1/4 "PHONE(TRS) x2
	Others	USB 2.0 Standard-A Connector (Female) for Save/Load, Speaker preset update, Firmware update with USB memory; AC inlet x1 with AC cord clamp
Indicators		POWER x1 (Green), ALERT x1 (Red), USB x1 (Green), PROTECT x2 (Red), CLIP/LIMIT x2 (Red), SIGNAL x2 (Green); Auto LED off feature
Processors		Input summing; D-CONTOUR(FOH/MAIN, MONITOR, OFF); Delay(0 - 74msec); HPF/LPF(cutoff frequency 20Hz~20kHz with polarity control); Speaker Processor(6 band PEQ + Limiter + Delay)
Latency		1.5 msec (Analog Input to Speakers)
Presets		8 user amplifier presets (Factory preset: Speaker presets for Yamaha passive speakers)
Protection circuit	Load protection	POWER switch on/off: Output mute; Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset; DC-fault: Power Supply shutdown (NOT restored automatically)
	Amplifier protection	Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically); Over current: Output mute (Restored automatically); Over voltage: Output limiter (Restored automatically); Integrated Power Limit: Output limiter (Restored automatically)
	Power supply protection	Thermal: Output limiter (Restored automatically) → Power supply shutdown; Over voltage: Power supply shutdown; Over current: Power supply shutdown
Amplifier class		Class D, Balanced output circuit (BTL)
Cooling		16 step variable speed fan x 2, front to rear airflow
Power requirements		Depending on area of purchase; 100V 50Hz/60Hz, 120V 60Hz, 220V-240V 50Hz/60Hz *Verified as operating at rated power voltage +/- 10% voltage.
Power consumption		310W (1/8 MAX power, 4Ω, Pink noise at all channels), 60W (4Ω, Idling)
Dimensions	W	480mm (18-7/8")
	H	88mm (3-7/16"): 2U
	D	388mm (15-2/8")
Net weight		7.4 kg (16.31 lbs)
Accessories		USB cover, Owner's Manual, Specification sheet, AC cable (2.0m) x 1
Others		Operating Temperature: 0°C to +40°C, Storage temperature: -20°C to +60°C

Preset speakers Fullrange

A10, A12, A12M, A15, CBR10, CBR12, CBR15, Club112V, Club115V, Club215V, ClubM10V, IF211264, IF211295, IF211299, IF2112AS, IF2112M64, IF2112M95, IF2112M99, IF211564, IF211595, IF211599, IF2115AS, IF2115M64, IF2115M95, IF2115M99, IF2108, IF2205, IF2208, NSAW392, NSAW592, NSAW992, R12M, R15M, R112, R115, R215, VS4, VS6, VXC4, VXC6, VXC8, VXS5, VXS8

Subwoofer

A15W, ClubSW115V, ClubSW118V, ClubSW218V, IS1112, IS1118, IS1215, IS1218, R118W, VXS10S

Bi-AMP

IF211264, IF211295, IF211299, IF2112AS, IF2112M64, IF2112M95, IF2112M99, IF211564, IF211595, IF211599, IF2115AS, IF2115M64, IF2115M95, IF2115M99, IF311564, IF311595, IH200064, IH200095

Source : http://fr.yamaha.com/fr/products/proaudio/power-amps/px_series/px10/

Distribué par Yamaha Music Europe
