Fiche technique
- Fabricant : Pascal Audio
- Modèle : U-Pro2
- Catégorie : Amplis de sono monocanal
- Fiche créée le : 25/10/2016

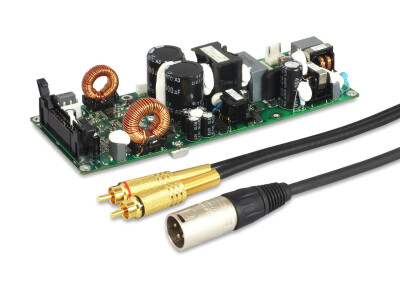

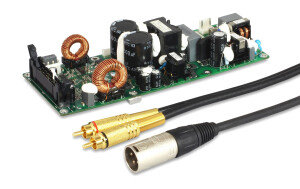

Module d'amplification 2 canaux pour enceintes de sono et de monitoring
|
Power Ratings (RMS @ 1% THD @ 230Vac) |
||||
|
16Ω |
8Ω |
4Ω |
Peak |
|
|
Channel 1 |
125 W |
245 W |
280 W |
1000 W @ 4 Ω |
|
Channel 2 (U-PRO2 only) |
125 W |
175 W |
110 W |
300 W @ 8 Ω |
|
Output Circuitry |
UMACTM Class D - full bandwith PWM modulator with ultra low distortion |
|
Output Voltage |
70 Vp / 140 Vpp (unloaded) |
|
Ampli er Gain |
26 dB |
|
Signal To Noise-Ratio |
> 119 dB (A-weighted, 20 Hz - 20 kHz, 8 Ω load) |
|
THD+N (typical) |
< 0.05 % (20 Hz - 20 kHz, 8 Ω load, 3 dB below rated power) |
|
Frequency Response |
20 Hz - 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power) |
|
Damping Factor |
> 350, channel 1 / > 225, channel 2 (8 Ω load, 1 kHz and below) |
|
Protection Circuits |
Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection |
|
Readouts & Control options |
Protect/Disable (mute), Temperature, Clip, Voltage, Auto Standby/Wake-up (3 timings) |
|
Power Supply |
URECTM universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter |
|
Operation Voltage |
Universal Mains, 85-265V |
|
Aux. Power for DSP |
±15 V, +7.5 V, maximum total 9 watt available |
|
Standby Consumption |
< 0.25 W (Green Energy Star & ErP 1275/2008/EC compliant) |
|
Dimensions |
38 x 70 x 180 mm / 1.5 x 2.5 x 7.0 in |
|
Weight |
U-PRO1: 220g / 0.49 lbs - U-PRO2: 229g / 0.50 lbs |
