TTrGames MiMiX

• Fabricant : TTrGames
• Modèle : MiMiX
• Catégorie : Autres applis audio pour mobiles ou tablettes
• Fiche créée le : 23/10/2014

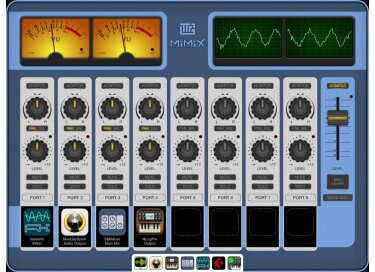

MiMiX is a mixer app for Audiobus enabled apps

- Mix up to 8 Audiobus enabled apps including the system input or multiple channels of a multi-channel input hardware
- Set the main mix volume level between -INF and +12dB
- Set the volume level of each input port between -INF and +12dB
- Set the panning or balance of each port (selectable)
- Mute any port
- Set any port to solo
- Monitor any port or the main mix on the built-in oscilloscopes and VU meters
- Control the main mix volume and volume, balance, mute and solo for each port using a MIDI controller or a Core MIDI app
- Set the MIDI CC parameters of each control via MIDI learn
- Set the MIDI channel and button behaviour in the System Settings
- Double-tap on each knob or slider to set its default value
- Check the saturation indicator for each port to check if the pots power reached 0dB
- Check the clip indicator on the main mix to avoid clipping.
- MiMiX uses a 32 bit integer engine so clipping can only occur at the main mix

- The balance (BAL) control takes a stereo source and varies the relative level of the two channels. The left channel will never come out of the right speaker by the action of a balance control.
- The pan (PAN) control turned right will send the left channel to the right speaker and turned left will send the right channel to the left speaker.

The MIDI controls to alter the MUTE buttons have 6 modes:
- GM : a CC value of 0..63 will turn it off, 64..127 on (as in General MIDI)
- Switch: a CC value of 0 will turn it off, 1..127 on (this is for using velocity sensitive toggle pads)
- Inverse GM : a CC value of 0..63 will turn it on, 64..127 off
- Inverse Switch: a CC value of 0 will turn it on, 1..127 off
- Toggle: a CC value of 1..127 will toggle the button (this is for using velocity sensitive momentary pads)
- GM Toggle: a CC value of 64..127 will toggle the button

The MIDI controls to alter the SOLO buttons have 6 modes:
- Toggle: a CC value of 1..127 will toggle the button
- GM Toggle: a CC value of 64..127 will toggle the button
