Description

Vends module Eurorack attenumixer Oms in serial Draags

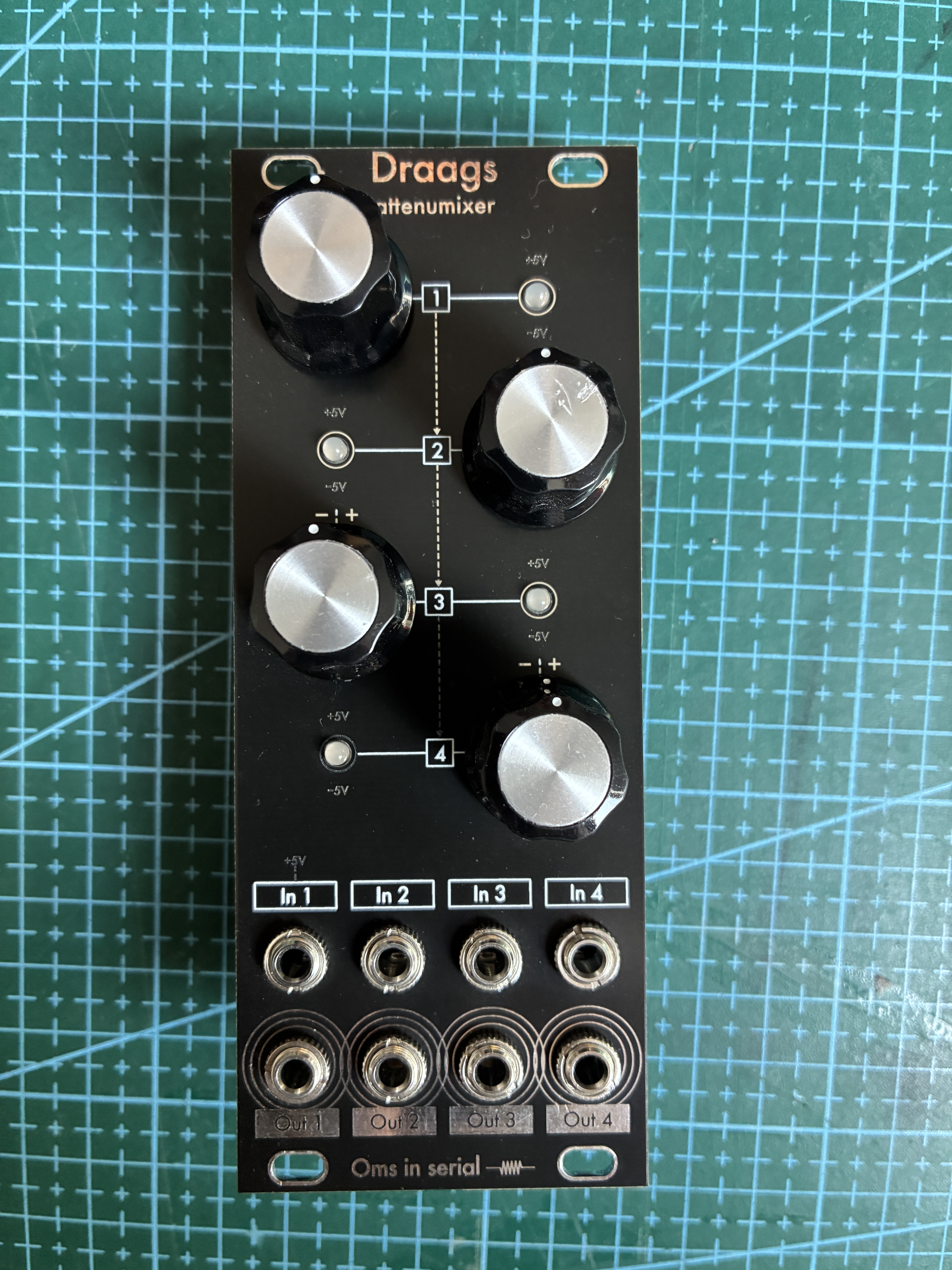

Draags is a 4 attenuverters audio/CV Eurorack mixer module. Each attenuverter output is added/normalized to the next attenuverter so you can get a 4 channel mixer at the last attenuverter output. But you can also get a two 2 channel mixer or a tree + one ...

A +5V source is normalized to attenuverter 1 input, hence you can bias your CV signals, or add/substract octaves to your V/oct signal for instance.

On every channel you get a green/red led (positive/negative signal) and +5V and -5V indicators which lights up when your signal goes above those limits. This may be very handy when you plug a Draags output to a CV on a module that uses an Electrosmith DPSM for instance. This kind of product handle CV in a +5V/-5V range. Everything above this range is clipped unless additional electronics is embedded to the module.

Specs

Width 10HP/3U
Depth 25 mm
Power +12V, -12V
Current draw 89 mA +12V, 58 mA - 12V
