PS 110-B, Caisson de basses pour le monitoring de la marque Tannoy.

Avis
Comparateur de prix
Petites annonces
Forums

Fiche technique Tannoy PS 110-B

  • Fabricant : Tannoy
  • Modèle : PS 110-B
  • Catégorie : Caissons de basses pour le monitoring
  • Fiche créée le : 19/09/2018

Loudspeaker Section

  • Frequency Response: -3 dB 31 Hz -150 Hz (-10 dB @ 21 Hz)
  • Bass unit diameter: 10" - 254 mm
  • Low Frequency cutoff: -3 dB @ 31 Hz, 6th order tuning
  • vented box (36 dB / Octave below 31 Hz)
  • Maximum SPL: 110 dB peak SPL @ 1 meter at limiter threshold
  • System dimensions:
    • H 17.5"- 445 mm x
    • W 11 5/16" - 287 mm
    • D x 16.5" - 419 mm
  • System weight: 33 Lbs -14.5 Kg

Amplifier Section

  • Input Connectors:
    • PS110B: L/R XLR balanced inputs, 10 kOhm
    • PS110: L/R RCA, speaker level option
  • Input Level: Continuously variable input gain control
  • Low Pass Filter: Continuously variable 40 Hz - 150 Hz,24 dB/Octave
  • All Pass: 31 Hz - 300 Hz +3 dB
  • High Pass Filter: Fixed at 80 Hz, 12 dB / Octave
  • High Pass output:
    • PS110B: L/R, unity gain XLR balanced
    • PS110: L/R RCA, speaker level option
  • High Pass output Bandwidth: 80 Hz - 150 kHz -3 dB
  • Amplifier type: Mosfet outputs
  • Power rating: 110 Watts RMS
  • Protection: Limiter threshold at onset of clipping
  • Power indicator: Front mounted green LED in active mode, "when signal is present or on initial power up". Green LED turns to red if signal is not present for more than two minutes indicating stand-by mode. The sub turns "auto on" when signal is re-introduced.
  • AC Power Requirement: 110/120 VAC 50/60 Hz or 220/240 VAC 50/60 Hz
  • Power Consumption: 16 Watts at idle, 150 Watts at rated power

Distribué par ADAGIO France

»

Images Tannoy PS 110-B

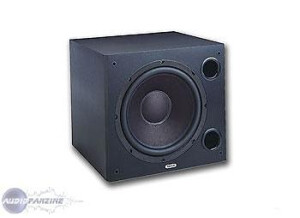

  • Tannoy PS 110-B
