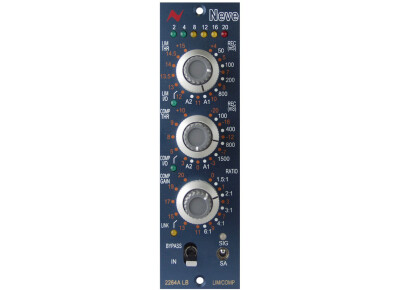

AMS-Neve 2264A LB Mono Limiter/Compressor module

Ajouter ce produit à
  • Mon ancien matos
  • Mon matos actuel
  • Mon futur matos
Déposer un avis
Où acheter 2264A LB Mono Limiter/Compressor module ?
Moins
  • Neuf (4 offres)
  • Occasion
Il n’y a pas de petite annonce pour ce produit.
Alerte nouvelle annonce

Fiche technique

Créée le 20/10/2011
  • Fabricant : AMS-Neve
  • Modèle : 2264A LB Mono Limiter/Compressor module
  • Catégorie : Compresseurs de studio
  • Poids du colis : 1.3 kg
  • Autres dénominations : 2264a lb monolimitercompressor module, 2264albmonolimitercompressormodule, 2264 a lb mono limiter compressor module, 2264 albmonolimitercompressormodule, 2264alb, 2264 alb
Levels
Input 10kΩ, bridging, balanced and earth-free.
Output Source impedance 80Ω, balanced and earth-free. Maximum output: +26dB into 600Ω
Gain 0dB
Noise -70.5dBu (20Hz ~ 20kHz) for linear and limit modes.
Frequency Response Flat, within 1dB from 20Hz ~ 20kHz
Distortion With limit switched IN, threshold set to +4dBu, recovery 800ms & input level +20dB:0.05% @ 1kHz (10Hz ~ 80kHz)With Compress & Limit switched OUT, input/output level +9dB: 0.05% @ 1kHz (10Hz ~ 80kHz)
Limiter section
Threshold Variable from +4dB ~ +15dB
Ratio Greater than 100:1
Attack Time 4mS
Recovery Time 50ms, 100ms, 200ms, 800ms and Auto1 (100ms/2sec) and Auto2 (50ms/5sec) settings
Compressor section
Threshold Variable from -20dBu ~ +10dBu
Ratio 1.5:1, 2:1, 3:1, 4:1, 6:1
Attack Time 3ms with Slow Attack off, 12ms with Slow Attack active.
Recovery Time 100ms, 400ms, 800ms, 1.5sec and Auto1 (100ms/2sec) and Auto2 (50ms/5sec) settings.
Gain Make-up 0dB ~ +20dB extra gain when Compress switched IN.
Meter Digital LED meter with approximate PPM ballistics indicates 0dB ~ 20dB of gain reduction.
Controls
Front Panel Controls Gain meter, Limiter Threshold & Recovery rotary controls with IN/OUT switch & indicator LED, Compressor Threshold and Recovery rotary controls with IN/OUT switch & indicator LED, Compressor Gain and Ratio rotary controls with LINK switch & indicator LED, Bypass switch, Signal Presence indicator LED, Slow Attack switch.
Dimensions
Width x Height x Depth & Weight (excluding front panel controls and rear connector) 38mm (1½ inches) x 132mm (5¼ inches) x 145 mm (5¾ inches) – 1.1kg (2½ pounds)
2264ALB Module requirements
Rack Compliant LunchboxTM rack with integral PSU and external audio connections.
Available Rack slots Single LunchboxTM rack slot required for each 2264ALB module.Two or three adjacent LunchboxTM rack slots required for each 1073LB/2264ALB or 1073LB/ 1073LBEQ/2264ALB module configuration when the modules are used together in Audio Processing Insert mode.

Source : http://ams-neve.com/products/outboard/2264alb-mono-limitercompressor-module
