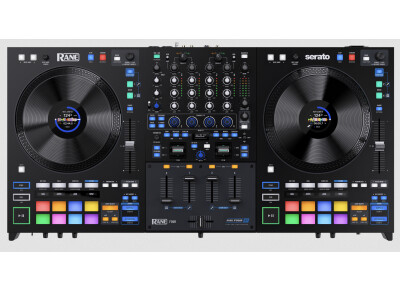

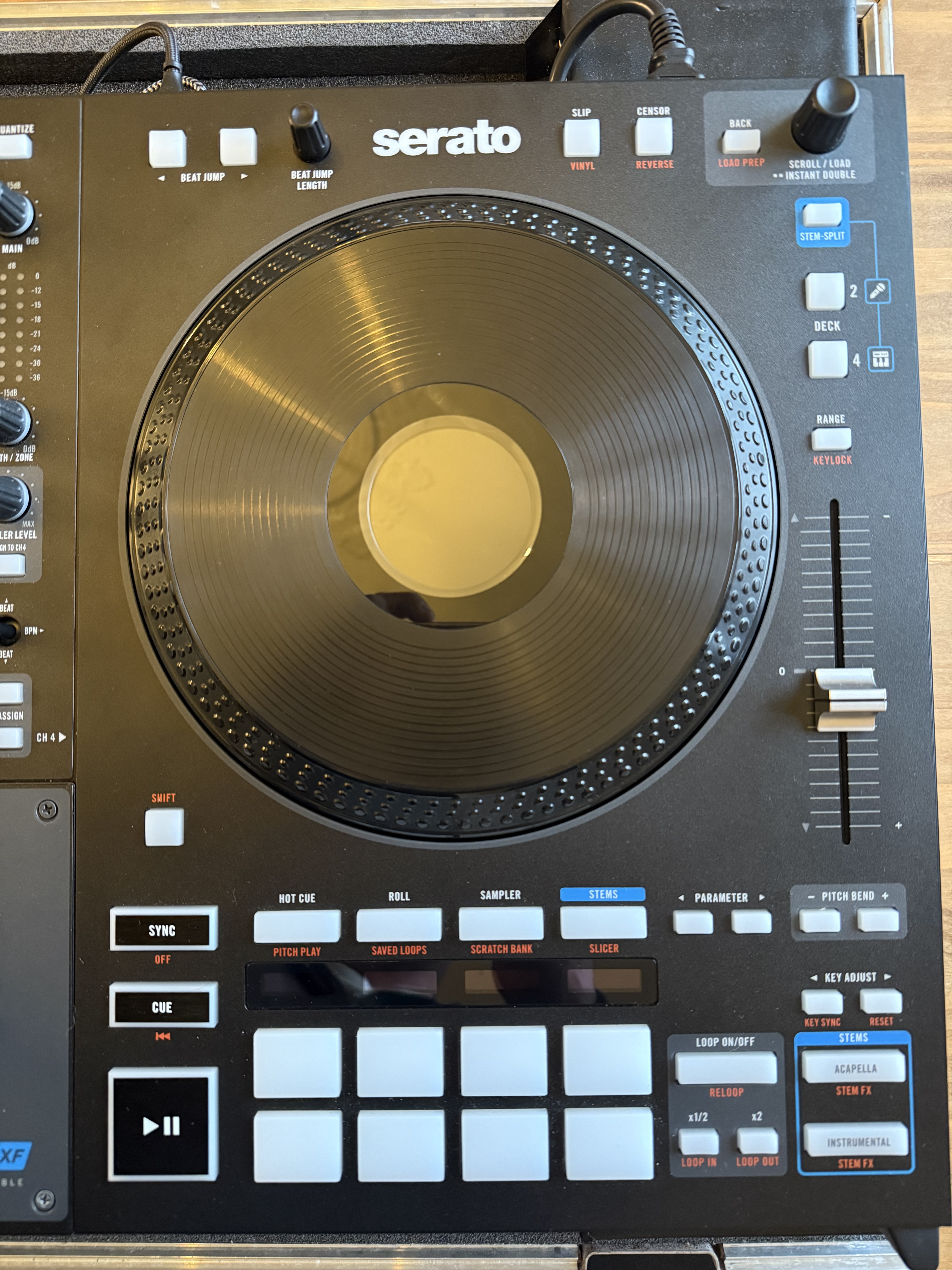

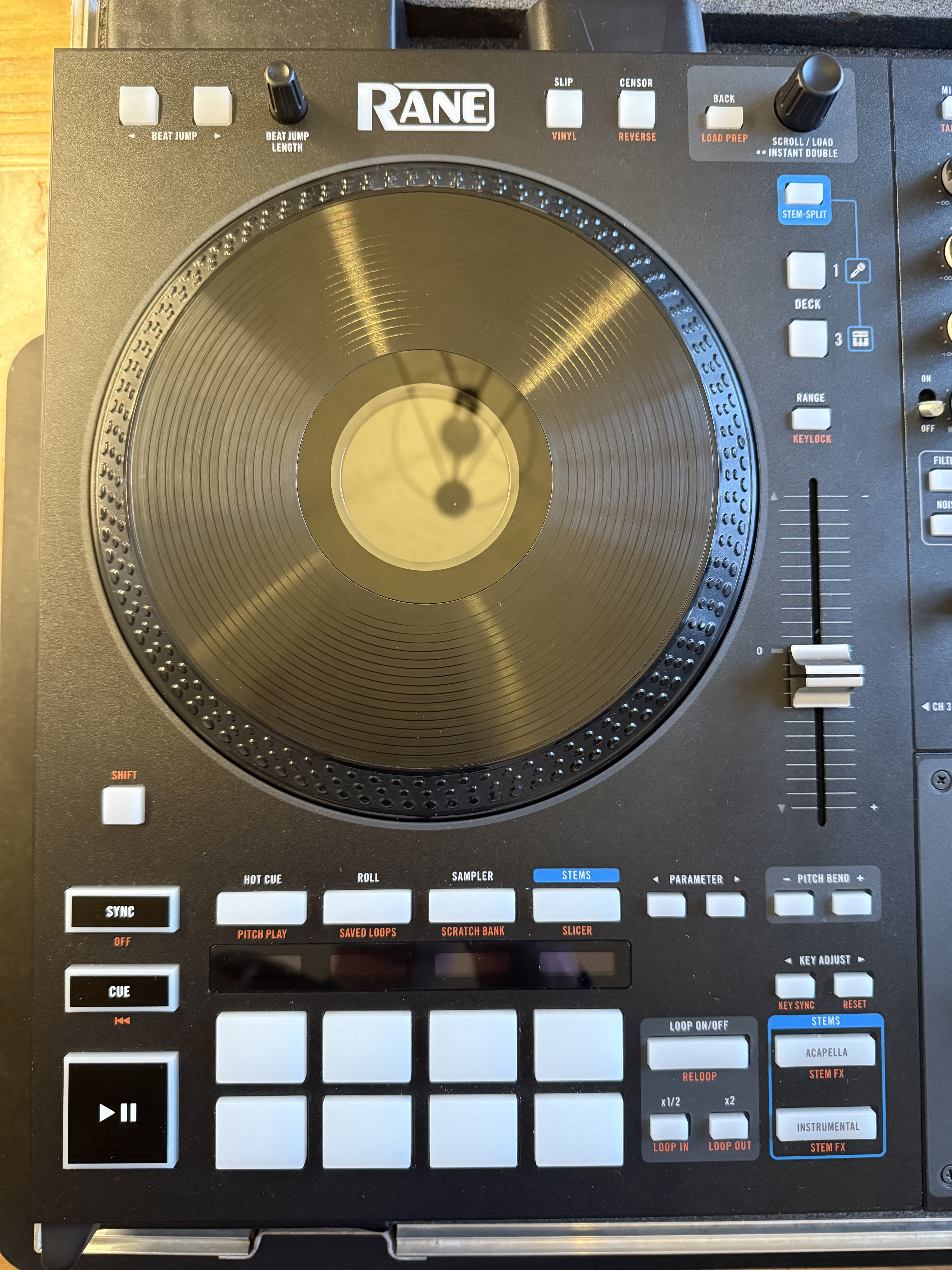

Argus du Rane Four
Les annonces avec options, ou constituant un pack, ne sont pas prises en compte.
Fiche technique
- Fabricant : Rane
- Modèle : Four
- Catégorie : Consoles DJ 4 voies et plus
- Poids du colis : 11.5 kg
- Autres dénominations : 4 , ranefour, rane 4
Digital Audio
Converters: Cirrus Logic, 24-bit PCM, 48 kHz
Digital Signal Processing: 32-bit, Floating Point, Double precisio
Dynamic Range (A-weighted, unity gain):
ADC: 113 dB
DAC: 113 dB
CD Input to Analog Output: 110 dB
CD Input to USB Output: 113 dB
USB Input to Analog Output: 113 dB
Inputs
Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS):
Analog Gain: 25 dB
Maximum Input: 110 mV
Gain Trim: Off to +26 dB (unity at center)
Tone Control: 2-band
Line/Phono Inputs 3/4 (RCA stereo pairs, switchable):
Line: Line
Maximum Input: 4 Vrms
Gain Trim: Off to +12 dB
Tone Control: 3-band, full-cut to +10 dB
THD+N (20 kHz BW @ 1 kHz: 0.004%
Phono: RIAA
RIAA Curve: +/-0.25 dB
Gain (@ 1 kHz): 31.5 dB
Maximum Input (@ 1 kHz): 106 mV
Dynamic Range (A-weighted): 102 dB
Outputs
Main Outputs (XLR):
Gain Trim: Off to 0 dB
Maximum Output: 8 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Frequency Response: Flat - 20-20kHz
Main Outputs (RCA stereo pair):
Maximum Output: 4 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Frequency Response: Flat - 20-20kHz
Booth Outputs (1/4”):
Gain Trim: Off to 0 dB
Maximum Output: 8 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Frequency Response: Flat - 20-20kHz
Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS):
Maximum Output: 4 Vrms Voltage: (no load)
Output Power: 50 mW (50 ohms)
Dynamic Range (A-weighted): 108 dB
Pads
(16) on/off multi-color back-lit pads (8 per deck, 9 modes each
Wheel Displays
(2) 320 x 240 Color LCD’s
Pad & FX Displays
(9) 128 x 32 Monochrome OLED’s
Fader
(1) MAG FOUR tension-adjustable crossfader with contour
(4) Standard channel faders
Connections
(2) XLR outputs (Main)
(2) 1/4” outputs (Booth)
(1) RCA stereo output pair (Main)
(2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
(2) RCA stereo input pairs (Deck 3-4)
(1) 1/4” (6.35 mm) TRS output (Headphones)
(1) 1/8” (3.5 mm) TRS output (Headphones)
(2) USB Type-B ports
(1) IEC power cable input
Power
Connection: IEC
Voltage: 100–240 V, 50/60 Hz
Consumption: 20 W
Dimension
Dimensions (width x depth x height):
30.84” x 15.84” x 4.08”
783.34 x 402.34 x 103.63 mm
Weight (including platters)
18.25 lbs.
8.27 kg
Distribué par audiopole
