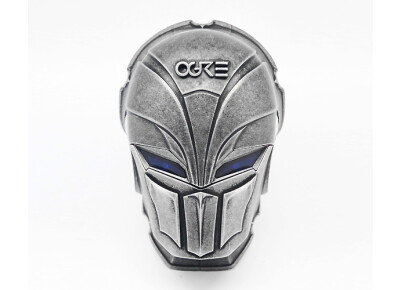

Ogre Kronomaster

• Fabricant : Ogre
• Modèle : Kronomaster
• Catégorie : Delays / échos pour guitare
• Fiche créée le : 13/07/2015

Delay effect pedal for guitar based on the PT2399 chip

• 1) A warm and transparent sounding digital/analog delay with analog direct signal path

  2) The sliding open/close cockpit system that the users can protect their tone-setup at any external interference

  3) Enclosure - Using a highly durable enclosure with original design manufactured by die casting method

  4) Cockpit head cover - Adopting a sliding-type cockpit head cover system in order to protect the setting status from outside access

  5) LED display - Two blue LED windows with high visibility are used as effect-on displays

  6) Knob - Adopting a knob with original design convenient for tone and volume control

  7) True bypass - As all effect pedals from OGRE are true bypass, there is no loss of guitar tone while effector is off

  8) Switch - Using a pedal-type switching method instead of metal knob of a mechanical switch

  9) PCB - Constructing the switch, input / output jack, and all the circuits on one board in order to minimize the interference sound by
              the wiring connection

  10) Hand-made - The hand-made effect pedal produced after thorough quality control

  ■ Controls : Time / Repeat / Mix
  ■ Connectors : Input / Outout / DC Input
  ■ Effect on : Press the pedal switch to turn the effector on (the LED indicator lights up).
  ■ Input Impedance : 500KΩ
  ■ Output Impedance : 10KΩ
  ■ Power Consumption : 25mA (Power on)
  ■ Delay Time : approximatley 40mSec ~ 550mSec
  ■ Power Supply : DC 9V 006P / 9V(constant voltage) AC adapter (center minus plug)
  ■ Dimensions : 94.5mm(W) x 142mm(D) x 67mm(H)
  ■ Weight : 475g (without battery)
