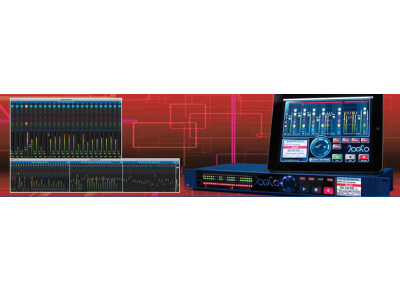

JoeCo BlueBox BBWR24B

Inputs:
Mic Preamps / line ins:

Balanced Outputs:
Headphone outputs:

Video Sync:
Timecode sync:

40
24 line inputs / 16ch
ADAT Lightpipe inputs
24
2 stereo, 2 assignable output feeds
No*
No*

Sample rates:
Bit depth:
Local Disk interface:
Local Disk format:
Local File format:
External drive:
File type:
User interface:

44.1kHz, 48kHz, 88.2kHz, 96kHz
16 / 24 bit
USB2 (compatible with USB3)
FAT32 – compatible with both Mac and PC
Broadcast WAV (BWAV)
USB2/3 hard drive or fast memory stick
Standard mono Broadcast WAV or multi-channel WAV
Primarily designed for use with the JoeCoControl app or JoeCoRemote iPad app, the unit can also be configured directly from the front panel

Audio i/o:

Workstation Interface:
Driver compatibility:
Latency:

Local Record/playback
Inputs
Mic preamps







Outputs


E-E

Monitoring

USB2.0 - up to 24 channels of 24bit 96kHz audio in both directions simultaneously
Core Audio and Windows drivers
Local foldback mix <10uS; Workstation (depends on spec of computer and plug-ins) typically 6.5mS round trip
Up to 24 channels @ up to 96kHz / 24 bit
Switchable microphone / line inputs on channel by channel basis
Gain: 0 - +60dB continuously variable;
  Soft limiter: software selectable on/off;
  Hi-pass filter: -6dB @ 100Hz, 12dB/octave
  Max input level: +21dBu
  EIN: <-124dBu (20-22kHz)
  THD: <-110dBFS (20-22kHz @ -10dBFS input)
  Cross talk rejection > 80dB @ 20kHz
  ZIN: >10kOhm (single ended); >2kOhm (differential)
Artist’s stereo headphone output
Engineer’s stereo headphone output
2 stereo artist feeds for feeding external headphone amps
THD+N E-E: < -90 dBFS (unity gain, 20 - 22kHz, unweighted)
  Frequency response: better than +/- 0.5dB, 20-40kHz @ 96kHz sampling
Front-mounted ¼" TRS jack socket: stereo headphone mix, PFL, solo etc (Engineer);
  Rear-mounted ¼" jack socket for stereo headphone mix only (Artist);
  24 line level outputs

Control and Synchronisation:

Audio clock synchronisation
Control


Physical


Power

Word clock, AES/EBU or SPDIF clock, Video reference* and SMPTE linear timecode* (all std frame rates supported)
JoeCoControl interface on workstation; JoecoRemote for iPad (requires JoeCoRemote hardware or JoeCo Bluetooth interface); Sony 9-pin and MIDI (MMC) for transport controls
19” rack-mounted 1U (435x44x170mm) - >3kg
  Optional 19” rack-mounted 2U breakout panel (XLR)
  (475mm x 88mm x 35mm) 1kg
12V dc (Kycon 4-pole connector), 35W max. External universal PSU included.
