Fiche technique

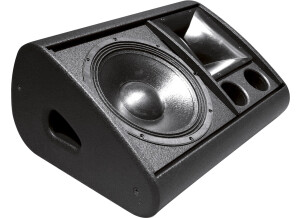

- Fabricant : Martin Audio
- Modèle : LE1500
- Catégorie : Enceintes de retour de scène / wedges
- Fiche créée le : 23/08/2011
TYPE: Two-way reflex active/passive stage monitor
with differential dispersion HF horn
FREQUENCY RESPONSE: (1) 56Hz-18kHz ±3dB
-10dB @ 48Hz
DRIVERS: 15" (380mm)/4" (100mm) voice coil, ultra-long
excursion, water resistant cone
1.4" (35mm) exit, 3" (75mm) voice coil titanium
dome HF compression driver
RATED POWER (2) FR/LF: 600W AES, 2400W peak
HF: 80W AES, 320W peak
RECOMMENDED AMPLIFIER 800-1500W into 4 ohms
SENSITIVITY (3) FR: 98dB
LF: 99dB
HF: 106dB
MAXIMUM SPL FR: 125dB continuous, 131dB peak
(calculated @ 1m) LF: 126dB continuous, 132dB peak
HF: 125dB continuous, 131dB peak
NOMINAL IMPEDANCE FR/LF: 8 ohms
HF: 16 ohms
DISPERSION (-6dB) 60º - 100º horizontal (differential dispersion)
60º vertical
CROSSOVER 1.3kHz active/passive (switchable)
ENCLOSURE 70 litres
FINISH Textured black paint
PROTECTIVE GRILLE Black perforated steel
CONNECTORS 2 x Neutrik NL4
FITTINGS 4 x skids
4 x M8 inserts
DIMENSIONS (W) 710mm x (H) 385mm x (D) 582mm
(W) 27.9ins x (H) 1
