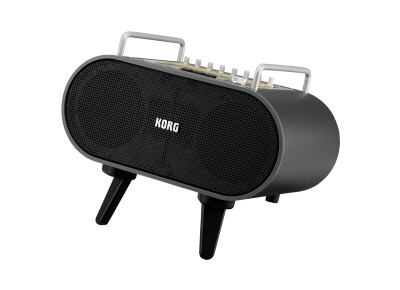

Stageman 80, Enceinte portable de la marque Korg.

Avis
Comparateur de prix
Petites annonces

Fiche technique Korg Stageman 80

  • Fabricant : Korg
  • Modèle : Stageman 80
  • Catégorie : Enceintes portables
  • Fiche créée le : 01/04/2016

A PA speaker with built-in rhythm machine and expanded features for musicians



  • A stereo 80W high-output system provides high-quality sounds
  • Rhythm machine function with excellent presence
  • Simple-to-use recording and playback functions
  • Mixer function that meets a variety of needs
  • Acoustage function for added spaciousness
  • Convenient tuner and metronome functions
  • Foot switch input for greater control during live performance
  • Flexibility for any performance location
Rhythm Function
Rhythm Styles
24 rhythm styles (8 Beat1, 8 Beat2, 8 Beat3, 8 Beat4 Shuffle, 8 Beat5, Unplug1 Cajon, Unplug2 Conga, Unplug3 Djembe, Oldies, Country1, Country2 Train Bt, Country3 3/4, Rock1, Rock2, Blues1, Blues2, 16 Beat1, 16 Beat2 Shuffle, 16 Beat3, Jazz1, Jazz2 3/4, Latin Jazz, Bossa, Samba)
Two variations for each rhythm style
Each variation has three patterns (basic, fill-in 1, fill-in 2)
Tempo
48 - 240 bpm
Chain Function
30 banks (up to 999 measures can be registered in each)
Recorder Function
Recording Format
PCM audio WAV format (file name extension .wav), 44.1 kHz, 16-bit
Recording Time
Depends on the SD card used; approximately 100 minutes per 1 GB
Maximum Continuous Recording Time
3 hours
Number of Songs
Maximum 50
Number of Multi-Track Recordings
Depends on the remaining free capacity of the SD card
Undo/Redo
Once
Player Function
Playback Formats
PCM audio WAV format (file name extension .wav) 44.1 kHz, 16-bit, Stereo
Maximum Data Size (Time)
Depends on the memory card used; approximately 100 minutes per 1 GB (for WAV data)
Maximum Number of Data Files (Number of Folders)
Up to 99 songs (per folder); a total of eight folders M1–M8 inside the PLAYER folder can be used
Playlist Function
10 banks (up to 24 songs can be registered in each)
Mixer Effect Section
Effects
Reverb effect
Equalizer
BASS, TREBLE
Other
ACOUSTAGE (wide stereo effect)
Tuner Function
Scale
12-note equal temperament
Type
Chromatic
Calibration
435 - 445 Hz
Tuning Guide Tone
Three types (guitar, bass, piano)
Display
7-segment four-digit LED
SD Card
Usable Cards
SD card: 1 GB - 2 GB
SDHC card: 4 GB - 32 GB
Input Jacks
MIC IN Jack
XLR-3-32 type, input impedance 4.7 k-ohm, nominal level -43 dBV
INPUT 1 Jack, INPUT 2 Jack (Guitar, Bass)
1/4" monaural phone jack, input impedance 1 M-ohm, nominal level -26 dBV
AUX INPUT Jack
1/8" stereo mini-phone jack, input impedance 10 k-ohm, nominal level -17 dBV
FOOT SW Jack
1/4" stereo phone jack, usable foot switch: VOX VFS5 foot switch
Output Jack
HEADPHONE/LINE OUT Jack
1/8" stereo mini-phone jack, maximum level 0 dBV, 30 mW, 32 ohm
Power Amp Output
Maximum 40W x 2
Speakers
4” 4Ω × 2
Power
Power Supply
DC 19V, six D batteries (alkaline or nickel-metal hydride are supported)
Battery Life
Approximately 20 hours (when using alkaline batteries)
Approximately 18 hours (when using nickel-metal hydride batteries)
* Varies depending on the batteries used and the conditions of use
Current consumption
1.4 A
Dimensions (W x D x H)
With stand folded down
398 x 242 x 231 mm / 15.67” x 9.53” x 9.09”
With stand extended
398 x 310 x 285 mm / 15.67” x 12.20” x 11.22”: Angle 26°
Speaker stand mount diameter
35 mm
Weight
8.4 kg / 18.52 lbs (Excluding batteries)
Others
Included Items
AC adapter (DC 19V), Card strap
Accessories
Foot switch: VOX VFS5





Distribué par Algam / La boîte noire du Musicien

»
