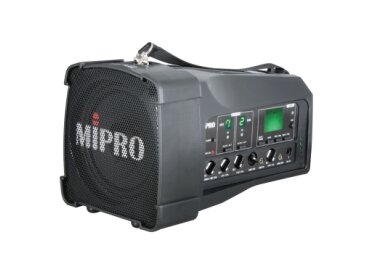

MIPRO MA-100

Max. Power Output

50W

Amplifier

Class D

Sensitivity

Typical: 90dB | Maximum: 102dB

T.H.D.

<1%

Frequency Response

50Hz~18kHz

Loudspeaker

5" full-range high efficiency

Audio Inputs

Wired: 6.3mm (1/4") optional MM-107 microphone
Line-In: 3.5mm (1/8")

Audio Output

3.5mm (1/8")

Installation

Microphone stand, table mounted, shoulder belt.

Power Supply

AC: External 100-240V AC switching power supply
DC & Battery: 14.8V/2.6AH rechargeable lithium battery

Charge Time

Up to 4 hours (automatic charging management)

Standby Time

MA-100su: Up to 12 hours

MA-100du: Up to 10 hours

Battery Indicator

4-level indicator (25/50/75/100%)

Color

Black or white option

Dimensions

135(W)×140(H)×240(D)mm / 5.3(W)x5.5(H)x9.4(D)"

Weight (battery included)

MA-100su: Approx. 1.8kg / 3.9lbs

MA-100du: Approx. 1.9kg / 4.1lbs

Receiver Channel

MA-100su: Single

MA-100du: Dual

Frequency Range

UHF 480~934 MHz (country dependent)

Bandwidth

24 MHz

Preset Channels

16

Channel Set-up

Scan & ACT sync

Antenna

Built-in

Built-in 2.0 USB Port

Yes

Play & Record

Yes

Patents & Approvals

Patented. Telecom and safety regulations approved.

Notes

Refer to actual product in the event of product discrepancy.
Frequency range, max. deviation, RF output power and spurious emission to comply regulations of different countries.
