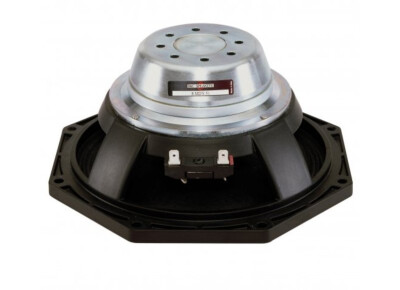

Acheter neuf B&C Speakers 8MDN51
- SonoVente Pas de stock / NC 156,00 €
Annonces 8MDN51
Alerte nouvelle annonceFiche technique
- Fabricant : B&C Speakers
- Modèle : 8MDN51
- Catégorie : Haut-parleurs à cône 8" (20 cm)
- Fiche créée le : 14/10/2015
- 400 W continuous program power capacity
- 51 mm (2 in) aluminium voice coil
- 70 - 4000 Hz response
- 98 dB sensitivity
- Neodymium ring magnet assembly
- Ventilated voice coil gap for reduced power compression
Specifications
- Nominal diameter 200 mm (8.0 in)
- Nominal impedance 8 Ω
- Minimum impedance 7.7 Ω
- Nominal power handling 200 W
- Continuous power handling 400 W
- Sensitivity (1W/1m) 97.0 dB
- Frequency range 70 - 4000 Hz
- Voice coil diameter 51 mm (2.0 in)
- Winding material Aluminium
- Former material Kapton
- Winding depth 16 mm (0.62 in)
- Magnetic gap depth 8 mm (0.31 in)
- Flux density 1.45 T
Design
- Surround shape Double Roll
- Cone shape Exponential
- Magnet material Neodymium Ring
- Spider Single
- Pole design T-Pole Woofer cone treatment WP Waterproof Front Side
Parameters
- Fs 70 Hz
- Re 5.1 Ω
- Qes 0.21
- Qms 3.7
- Qts 0.2
- Vas 16.0 dm3 (0.6 ft3)
- Sd 220.0 cm2 (34.1 in2)
- η₀ 2.4 %
- Xmax 6.0 mm
- Xvar 6.0 mm
- Mms 23 g
- Bl 15.3 Txm
- Le 0.8 mH
- EBP 333 Hz
Mounting And Shipping Info
- Overall diameter 225 mm (8.8 in)
- Bolt circle diameter 210 mm (8.3 in)
- Baffle cutout diameter 187.0 mm (7.4 in)
- Depth 95 mm (3.74 in)
- Flange and gasket thickness 11 mm (0.4 in)
- Air volume occupied by driver 1.1 dm3 (0.04 ft3)
- Net weight 2.55 kg (5.6 lb)
- Shipping units 1
- Shipping weight 2.95 kg (6.5 lb)
- Shipping box 300x160x180 mm (11.8x6.3x7.1 in)
Service Kit
- RCK008MDN518
Source : http://www.bcspeakers.com/products/lf-driver/8-0/8mdn51
