Fiche technique
- Fabricant : Beyma

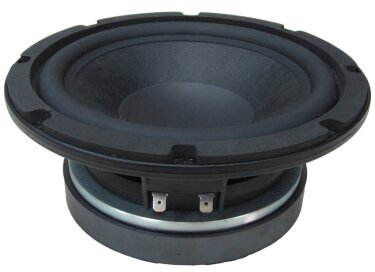

- Modèle : 8P300Fe
- Catégorie : Haut-parleurs à cône 8" (20 cm)
- Autres dénominations : 8p 300fe, 8 p300 fe, 8p300fe
TECHNICAL SPECIFICATIONS
| Nominal diameter | 200 mm 8 in |
| Nominal impedance | 8 ohm |
| Minimum impedance | 5.6 ohm |
| Power capacity | 300 W AES |
| Program power | 600 W |
| Sensitivity | 94 dB @ 1 W @ ZN |
| Frequency range | 50 - 8000 Hz |
| Voice coil diameter | 63.5 mm 2.5 in |
| BL factor | 11.3 N/A |
| Moving mass | 0.024 kg |
| Winding length | 15 mm |
| Air gap height | 7 mm |
| Xdamage pp | 24 mm |
THIELE SMALL PARAMETERS
| Fs | 51 Hz |
| Re | 5.3 ohm |
| Qms | 17 |
| Qes | 0.33 |
| Qts | 0.32 |
| Vas | 26.3 l |
| Cms | 385 µm / N |
| Rms | 0.47 kg/s |
| Efficiency % | 1.05 |
| Sd | 0.022 m² |
| Xmax | 6 mm |
| Vd | 132 cm³ |
| Le @1 kHz | 0.3 mH |
CONSTRUCTIVE DETAILS
| Depth | 97.5 mm 3.84 in |
| Net weight | 4.03 kg 8.88 lb |
| Total weight | 4.23 kg 9.32 lb |
| Magnet | Ferrite |
