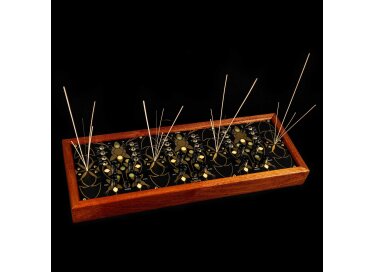

Folktek Resonant Garden

The Resonant Garden is an electronic-acoustic hybrid instrument designed to create anything from beats and oddities to dense sound scapes.

The garden utilizes three Alter circuits each equipped with a mic pre-amp, and 4 sprout (stringed) panels for generating acoustics. By plucking, rubbing, tapping or even bowing, those micro-acoustic sounds become amplified and affected by the Alter in any number of ways. In essence, the garden is a large microphone designed to pick up vibrations.

A Monolithic version of the Resonant garden consists of a single faceplate for the entire instrument.

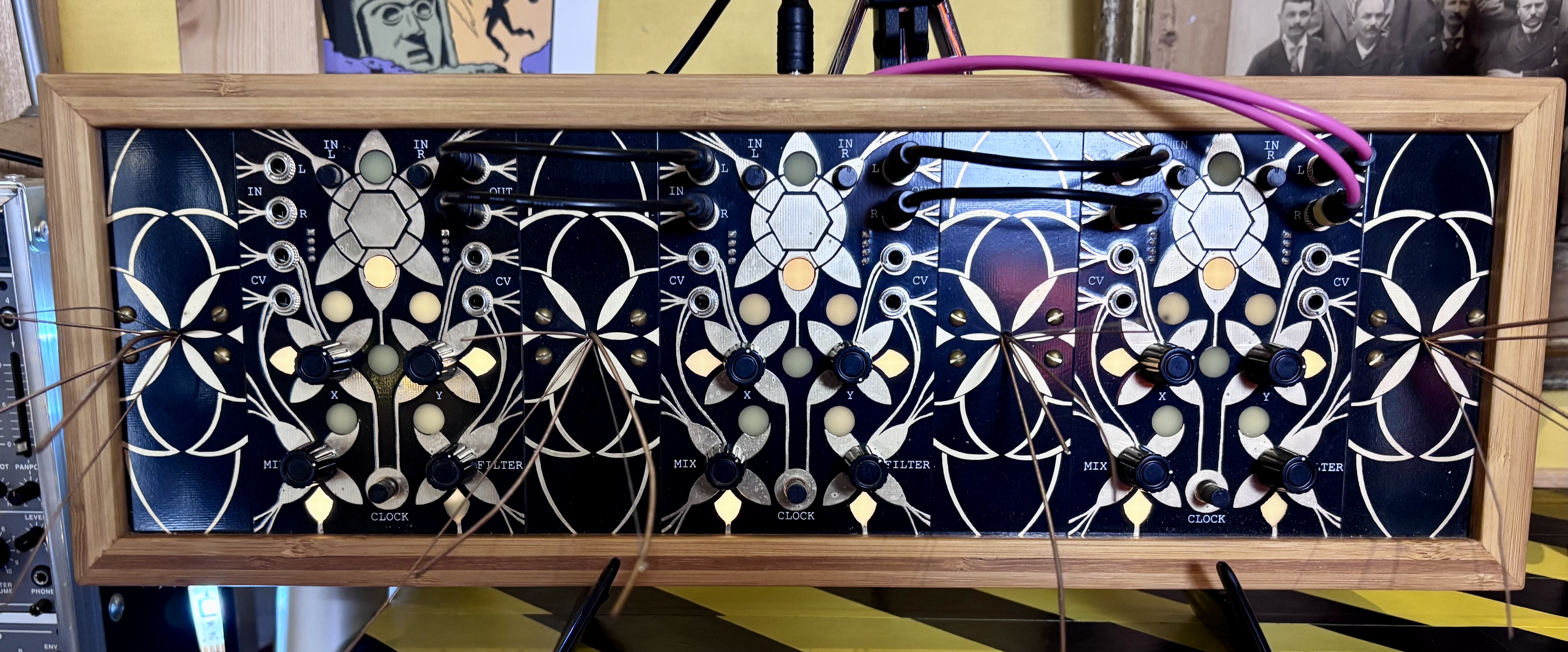

A Discrete version of the Resonant garden consists of 7 faceplates, three for each Alter module and four for the sprouts. The discrete version allows for individual sprout and Alter modules to be moved around or substituted with other modules. Keep in mind the power and audio distribution system is designed for the configuration shown here, but can easily be hand wired with standard cables (sold separately). The maximum depth for modules in the garden box is 33mm.

There are two Alter 1 units and one Alter 2 unit. Each Alter 1 has seven DSP effects which are selected by touching the copper hexagon:

1 - long delay (capable of near infinite feedback looping)
2 - notated granular delay
3 - plate reverb
4 - shimmering reverb
5 - distortion and multi-filter
6 - pitch delay
7 - stutter glitch

Alter 2 has the following effects:

1 - analog delay
2 - reverb with infinite capture and lp + hp filters
3 - choral reverb
4 - palindrome reverse delay - backward/forward repeat
5 - time stretch
6 - pitch shift (notated semi-tones
7 - time stretch glitch

On each of the Alter sections, the following is present:
- Control for the gain of the mic pre-amp or any incoming audio.
- Controls for Mix, X, Y and Sift as well as clock.
- All effects have a variation of a filter which may change effect to effect.
- X and Y control various rates.
- Clock control adjusts the rate which controls the DSP which can drastically change the effect. In doing so it does slightly lower the quality of the output signal but the results are fantastic. This clock is not for synchronization.
- Mix, X, Y and Sift all have CV control inputs.
 - Each control level or CV input is visualized on the control panel.

Each garden panel is equipped with a contact mic. A contact mic is designed to pick up vibration. The mic pre-amp is specifically designed to deal with the frequencies of the contact mic by boosting certain frequencies and dulling others in order to optimize the sound quality. The mic pre-amp has a gain control so the level can be adjusted according to how you intend to play.
