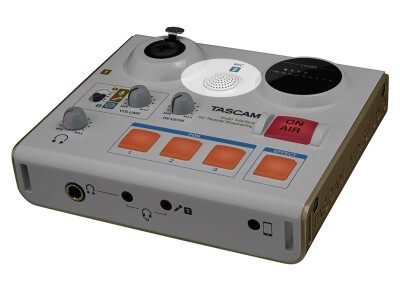

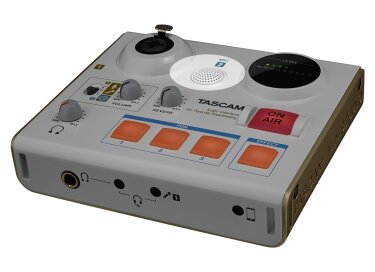

Tascam MiNiSTUDIO Personal US-32

Ajouter ce produit à

Déposer un avis

Prix public US : $129 incl. VAT

Où acheter MiNiSTUDIO Personal US-32 ?

Moins

Il n’y a pas de petite annonce pour ce produit.

Alerte nouvelle annonce

Fiche technique

Créée le 17/08/2016

Fabricant : Tascam
Modèle : MiNiSTUDIO Personal US-32
Série : MiNiSTUDIO
Catégorie : Interfaces et contrôleurs pour podcast & streaming
Poids du colis : 761 g
Autres dénominations : mi ni studio personal us 32, ministudio personalus 32, ministudiopersonalus32, ministudio personal us32

Interface audio USB pour le broadcasting avec micro intégré

Sampling frequency	44.1k/48k/88.2k/96kHz
Quantization bit rate	16/24bit
Analog audio inputs
MIC IN	IN 1
Connector	XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance	2.4k ohms
Maximum input level	+7.7dBV (2.427Vrms)
Gain	45dB
INST IN	–
Connector	–
Input impedance	–
Gain	–
MIC IN (Plug-in Power)	3.5mm(1/8”) 4-pole mini jack/3.5mm (1/8”) mini jack
Input Impedance	5k ohms or more
Gain	45dB
LINE IN	3.5mm(1/8”) stereo mini jack
Input Impedance	5k ohms or more
Maximum Input Level	+7.7dBV (2.427Vrms)
MIC 2	Omnidirectional Condenser Mic
ANALOG AUDIO OUTS
LINE OUT	–
Output impedance	–
Nominal output level	–
Maximum output level	–
PHONES
Connector	1/4” Stereo Phone-jack/ 3.5mm(1/8”) 4-pole mini jack/3.5mm (1/8”)Stereo mini jack
Maximum output level	15mW+15mW above (Less than THD+NO.1%,32Ωloaded)
CONTROL INPUT/OUTPUT
USB	USB B-type 4-pin
Format	USB2.0 High Speed (480MHz)
DC IN 5V	USB Micro B type

AUDIO PERFORMANCE
Frequency response
	(To PHONE OUT)
44.1k/48kHz	20Hz to 20kHz 0/-1dB (PHONE OUT, JEITA)
88.2k/96kHz	20Hz to 40kHz 0/-3dB (PHONE OUT, JEITA)
EIN	Less than -113dBu (150 ohm terminated, volume max)
THD+N	Less than 0.008%/
S/N ratio	90dB or more (MIC IN to PHONE OUT, volume min, JEITA)
Crosstalk	95dB or more (MIC IN to PHONE OUT, 1kHz, JEITA)
