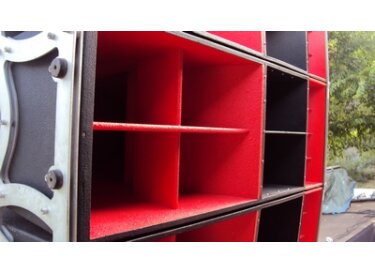

Clear Sound LA 2108H4

• Fabricant : Clear Sound
• Modèle : LA 2108H4
• Catégorie : Enceintes d'array
• Fiche créée le : 09/01/2011

Features:

Four 1" neodymium planar wave drivers
One 8" mid range driver
Two 10" ultra low distortion woofers
90° horizontal coverage
Variable curving 0° to 10°
Outstanding SPL capacity at very low power compression
Highest output to size ratio
Highest output to weight ratio
Superior sound

LA-LCS can be manufactured to work with a liquid cooling system in order to reduce the heat in each one of the speakers, which allows the system to work for a long time without any change in the sound pressure level. In every loudspeaker there is an option to be used specially selected according to T&S parameters FERROFLUID which benefits are:

Increased thermal power handling
Reduced thermal power compression
Smoothing of frequency response curve
Reduced distortion
Reduced warranty returns
Increased production yields

The presence of horns leads to an extremely high sound pressure, low distortions and an optimal sound dispersion.

In order to achieve a flat wave in the mid-frequency and in the high-frequency
spectrum we use one 8'' speaker and four 1'' drivers.

The mid and high sections are loaded by a wave converter which transforms the spherical waves into cylindrical isophase waves.

In this way the interference between them is reduced to minimum and as a result there is maximum
concentration in mid- and high-frequency spectrum.

An exceptional Hi-Fi sound with incredible sound pressure and phase characteristics is achieved.

In combination with RLH 118 SX or HL121, the system is a perfect choice for sports halls and stadiums.

The loudspeaker shall be operated with a separate dedicated
electronic controller.

Specification

Type 3-way horn-loaded high quality Line Array
Application Minimum 4, maximum 16 units line array
Frequency response 80Hz - 22 kHz (-3dB) single box
Power handling AES (low,mid,hi) 1200 / 350/ 350
Sensitivity 1w/1m 104 / 109/ 114 / dB (low,mid,hi)
Max. SPL peak 140 / 141 / 146 / dB (low,mid,hi)
Dispersion 90 x 5 degr
Components
High frequency 4 x 1” BMS neodymium with planar wave module 1.75” (44.4 mm) voice coil, 80 W (AES) each
Mid frequency 1 x 8'' ultra low distortion middle 2" voice coil
Low frequency 2 x 10'' ultra low distortion woofers 3" voice coil
Crossover point (low,mid,hi) 80Hz / 300Hz / 2000Hz
Nominal impedance (low,mid,hi) 16 Ohm / 16 Ohm / 8 Ohm /
Input connectors 2 x Neutrik™ NL8MPR
Enclosure material 15mm Birch plywood
Finish Black & Red textured paint
Dimensions 1425 x 480 x 675 mm (W,H,D incl. hardware)
Net weight 87 kg.
