Art MX225

Ajouter ce produit à
  • Mon ancien matos
  • Mon matos actuel
  • Mon futur matos
(1)
Déposer un avis

Fiche technique

Créée le 01/07/2010

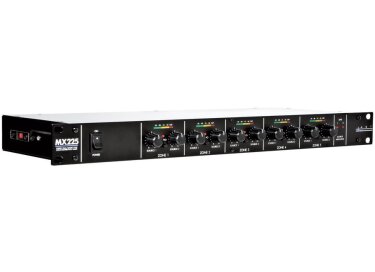

MX225 Zone Distribution Mixer

The MX225 is designed for remote volume control of multiple amplifiers or powered speakers in a distributed audio system. Two stereo sources are available to each of five output zones. Each source input pair handles separate left and right balanced line level signals. Each output zone features independent level control from inputs 1 and 2, stereo/mono selector with mono indicator, LED level metering, and left and right balanced line level zone outputs. All audio connections are balanced XLR. The built in power supply and single high 19" rack mount format allows for easy installation and reliable operation.

  • Left and right balanced Source 1 and 2 Inputs, accepts stereo or mono signal sources
  • Source 1 and 2 input channels are internally routed to all five Zone channels
  • Five Zone channels each feature Source 1 and 2 level controls and left and right balanced output XLR connectors
  • Stereo/Mono selector on each zone sums left and right into Mono mode when engaged
  • Mono indicator LED on each zone channel indicates that mono has been selected
  • Five LED level metering (-25, -20, -15, -10, Clip) on each zone channel indicate signal activity for each zone
  • Source 1 and 2 indicator LEDs show you when signal is present in each source channel
Input Connections XLR-F balanced (x4)
Output Connections XLR-M balanced (x10)
Input Impedance 47k Ω
Output Impedance 200 Ω
Total Harmonic Distortion .05% Typical
Signal to Noise Ratio > 90dB typical
Maximum Input Level +20dBu
Maximum Output Level +24dBu balanced
Maximum Gain +6DB
Power Requirements USA - 105 to 125 VAC / 50-60Hz, 15 W typical
Dimensions 1.75"H x 19"W x 7.25.0"D (44.5mm x 483mm x 184mm)
Weight 5.34 lbs (2.42 kg)

Distribué par MSC Distribution

»

Avis utilisateurs

5.0/5
(1 avis)
5
100 %
(1 avis)
Déposer un avisDemander un avis
RRonan44RRonan44

Bon splitter actif

Art MX225Publié le 06/04/16 à 09:54
Splitter actif basique,très facile d'utilisation
Mixeur / Distributeur 5-zones
Commutateur stéréo / mono
vumètres 5 LED pour chaque zone
4 entrées ligne XLR (2x L / R), 10x Out XLR (5x L / R)
Dimensions: 482 x 152 x 44,5 mm (format rack 19"/ 1U)
Poids: 2,4 kg
Je referais ce choix sans hésiter et je le conseille.
»
