Fiche technique
- Fabricant : DPA Microphones
- Modèle : d:fine In-Ear Broadcast Headset Microphone
- Série : d:fine
- Catégorie : Microphones serre-tête
- Autres dénominations : d fineinearbroadcastheadsetmicrophone, dfineinearbroadcastheadsetmicrophone, d fine in ear broadcast headset microph 1 , d fineinearbroadcastheadsetmicroph 1 , dfineinearbroadcastheadsetmicroph 1

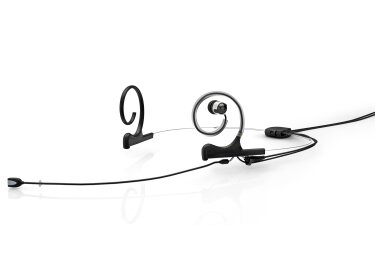

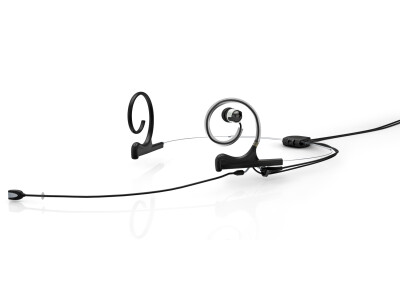

In-Ear monitor and discrete microphone for broadcast available in single-end/single-in-ear, dual in-ear or dual mount/single-in-ear editions
| Directional characteristics: | Omnidirectional |
|---|---|
| Principle of operation: | Pressure |
| Cartridge type: | Pre-polarized condenser |
| Frequency range: | 20 Hz - 20 kHz |
| Frequency range, ± 2 dB:: | 20 Hz - 20 kHz with 3 dB soft boost at 8 - 15 kHz |
| Sensitivity, nominal, ± 3 dB at 1 kHz: | 6 mV/Pa; -44 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted: | Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4: | Typ. 38 dB (max. 40 dB) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): | Typ. 68 dB(A) |
| Total Harmonic Distortion (THD): | <1 % up to 123 dB SPL peak; <1 % up to 120 dB SPL RMS sine |
| Dynamic range: | Typ. 97 dB |
| Max. SPL, peak before clipping: | 144 dB |
| Output impedance: | From MicroDot: 30 - 40 ohm. From DAD6001-BC: 100 ohm. |
| Cable drive capability: | Up to 300 m (984 ft) with DAD6001-BC XLR adapter |
| Output balance principle: | Signal balanced with DAD6001-BC XLR adapter |
| Common Mode Rejection Ratio (CMRR): | > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter |
| Power supply (for full performance): | Min. 5 V to max. 50 V through DPA adapter for wireless systems. 48 V phantom power ± 4 V with DAD6001-BC XLR adapter. |
| Current consumption: | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR adapter. |
| Connector: | MicroDot |
| Color: | Black, beige, brown, lime |
| Weight: | Microphone boom: 0.8 g (0.03 oz). Earhook: 1.1 g (0.04 oz). Cable: 6.6 g (0.23 oz). Total: 8.5 g (0.30 oz). |
| Microphone head size (h x w x d): | 9.5 x 5.3 x 2.9 mm (0.37 x 0.21 x 0.11 in) |
| Capsule diameter: | 5.4 mm (0.2 in) |
| Mic boom length: | 110 mm (4.3 in) |
| Cable length: | 1.3 m (4.3 ft) |
| Cable color: | Black, beige, brown |
| Cable diameter: | 1.6 mm (0.06 in) |
| Polarity: | +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter) |
| Electro Magnetic Compatibility (EMC): | Fully compatible |
| Temperature range: | -40 °C to 45 °C (-40 °F to 113 °F) |
| Relative Humidity (RH): | Up to 90% |
| d:fine In-Ear Broadcast Headset (Specifications, In-Ear Drivers): | - |
| Type: | Dynamic earplug (acknowledged Hi-Fi plugs) |
| Connector: | 3,5 mm stereo Mini-Jack. |
| Single In-Ear: | Signal at Mini-Jack Tip |
| Dual In-Ear: | Signal at Mini-Jack Tip (Left – mic boom side) and Ring (Right) |
| Sensitivity: | 107 dB |
| Nominal impedance: | 18 Ω |
| *: | 2 sizes Ear-adapters are included |
