Prix public : 115 € HT
Fiche technique
- Fabricant : Erica Synths
- Modèle : Pico BBD
- Série : Pico
- Catégorie : Modules d'effets pour synthés modulaires
- Poids du colis : 98 g
- Autres dénominations : picobbd

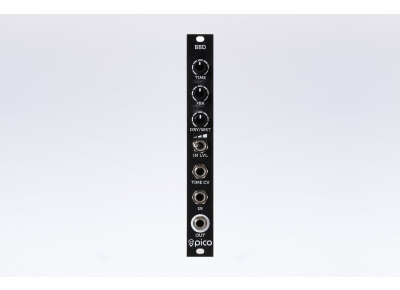

Pico BBD is great sounding, full analogue 4092 stage bucket brigade delay module; the smallest BBD in eurorack. Besides nice flanger and delay effects, at full CW settings of TIME and feedback knobs it can produce extreme sonic artefacts. Take note that this BBD unit doesn't have any kind of post delay filter therefore the higher the delay time setting the higher the produced noise in the output!
Features
- Full analogue circuit
- 4092 stage BBD chip
- Up to 300ms delay time
- CV control over delay time
- Input and output protection against overvoltage
- Protection against reverse PSU connection
Technical specifications:
| Delay time | up to 300ms |
| CV input level (full span) | -5V - +5V |
| Power consumption | +20mA, -9mA |
| Module width | 3HP |
| Module depth | 35mm |
»
