Fiche technique
- Fabricant : Kilpatrick Audio

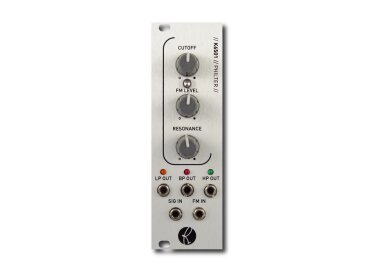

- Modèle : K6501 Philter
- Catégorie : Modules de filtres pour synthés modulaires
- Autres dénominations : k6501philter, k 6501 philter
Eurorack Multi-mode Filter Inspired by PHENOL - 8HP
- Eurorack (3U) form factor - 8HP width
- Filter circuit inspired by PHENOL and true to the sound and range of control
- Simultaneous low-pass, band-pass and high-pass outputs
- Unique two-pole design with special resonance limiter for huge peaks without oscillation
- Control over cutoff, resonance and FM level (voltage control of frequency)
- All inputs and outputs are tolerant of +/-12V
- All outputs drive 10Vp-p with 1K output impedance
- Requires +12V (20mA), -12V (10mA) - 16 pin Doepfer-style power cable used - approx. 0.4W total power consumption
- Designed and made in Canada using high quality parts.
- Warranty: 1 year
»
