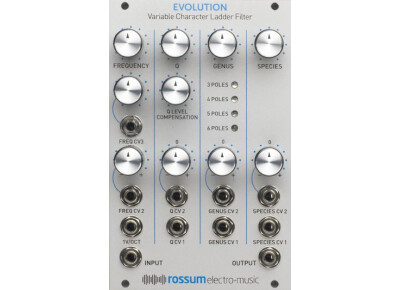

Rossum Electro-Music Evolution

• Fabricant : Rossum Electro-Music
• Modèle : Evolution
• Catégorie : Modules de filtres pour synthés modulaires
• Fiche créée le : 23/01/2016

Variable Character Ladder Filter enhanced from the Moog ladder filter from the original E-mu Systems 2100 LPF module

• A Genus control that allows continuous voltage control of the number of filter poles (from 3 to 6 poles), essentially allowing real-time variation of Evolution’s effective cutoff slope from 18dB/oct to 36dB/oct. LEDs give continuous indication of the current slope.
• A Species control that lets you vary the signal level into the ladder, letting you control the intensity of the filter’s characteristic distortion. When in self-oscillation mode, this control modulates the amplitude of Evolution’s output.
• Voltage controlled resonance with a variable Q Level Compensation control that controls the balance of the resonant peak and the frequencies below the cutoff frequency (which would otherwise be attenuated as the resonance is increased).
• An extremely accurate and temperature-stable frequency control exponential generator (accurate over 10 octaves), rivaling the specifications of the best analog VCOs.

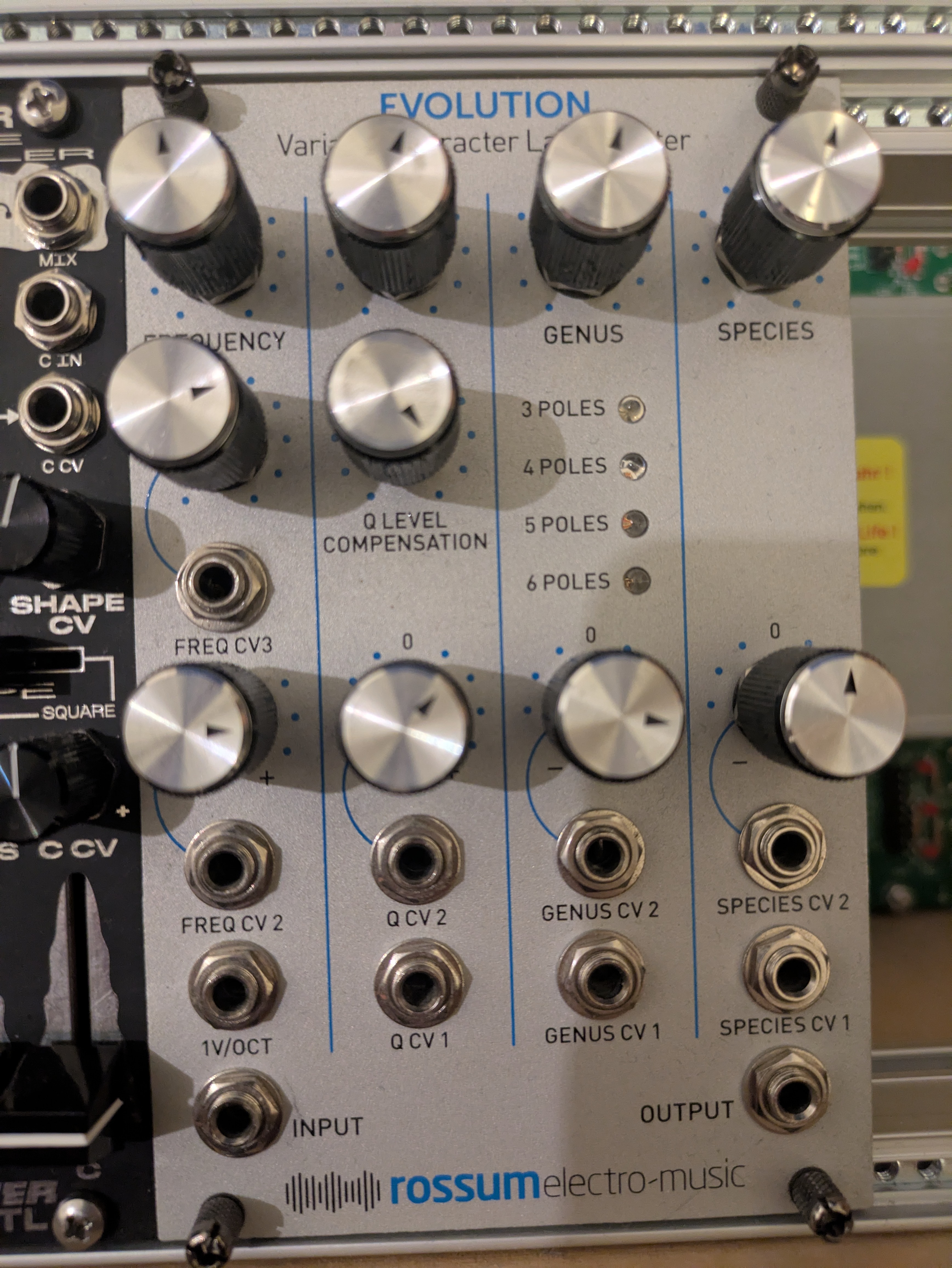

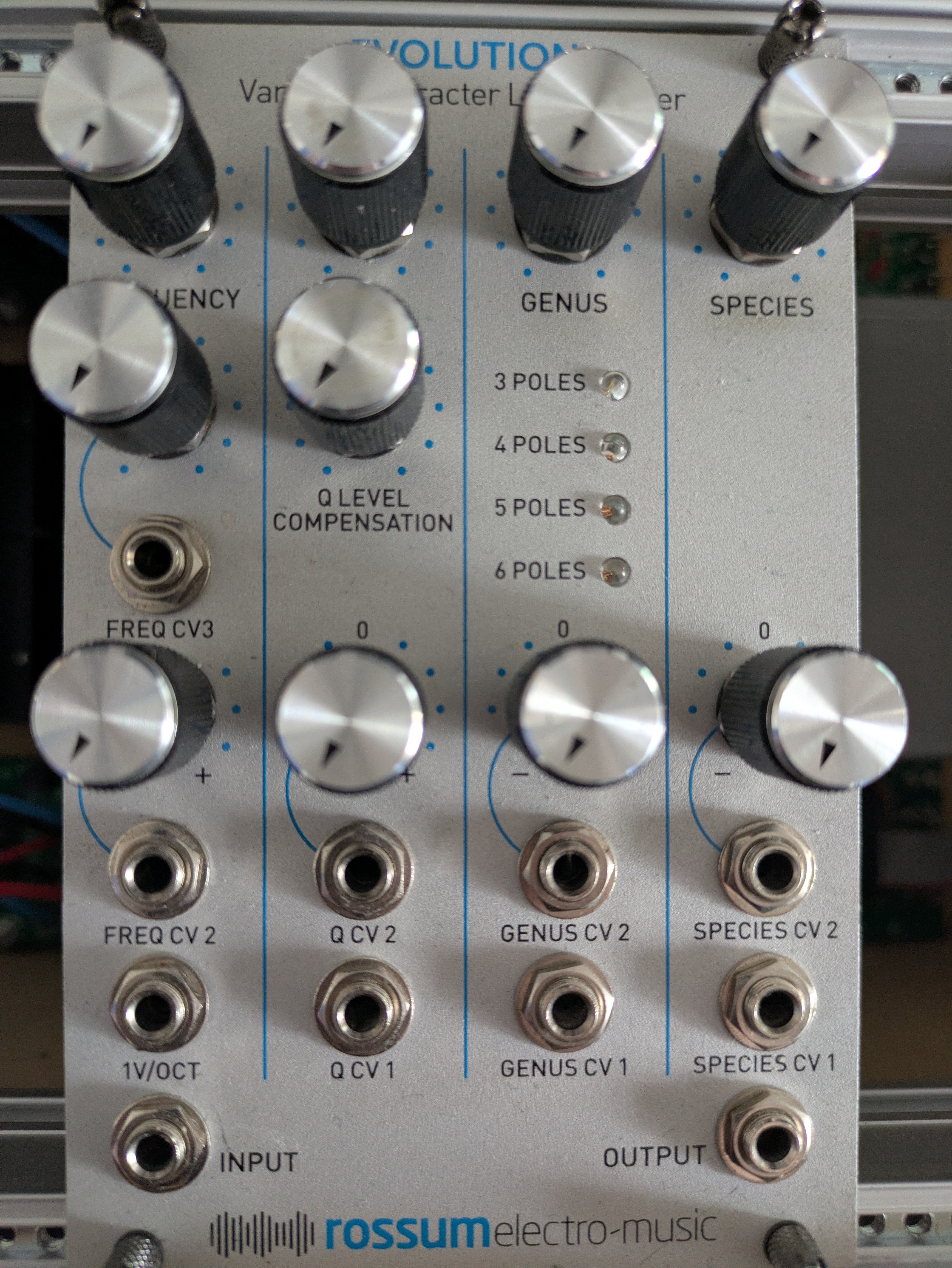

Controls

• Initial Frequency
• Initial Q
• Q Level Compensation
• Initial Genus (# of Poles)
• Initial Species (Ladder Input Level)

Signal Input

1x 3.5mm mono socket  – 100kΩ Input Impedance

Signal Output

1x 3.5mm mono socket – 1kΩ Output Impedance

Frequency CV Inputs

• 1x Attenuated – min 50kΩ Input Impedance
• 1x w/Attenuverter – 100kΩ Input Impedance
• 1x 1V/OCT Full Level – 100kΩ Input Impedance

Q CV Inputs

• 1x Full Level – 100kΩ Input Impedance
• 1x w/Attenuverter – 100kΩ Input Impedance

Genus CV Inputs

• 1x Full Level – 100kΩ Input Impedance
• 1x w/Attenuverter – 100kΩ Input Impedance

Species CV Inputs

• 1x Full Level – 100kΩ Input Impedance
• 1x w/Attenuverter – 100kΩ Input Impedance

Power Requirements

+/-12V via 16-pin, Doepfer-style connector

Current Draw

• 85mA +12V, 75mA -12V (maximum)

Dimensions

• 16HP (W); Rear of panel to top of power connector (with connector plugged in) 25mm (D)

Supplied Accessories

• 1x 16-pin, Doepfer-style power cable
• 4x M3 screws
• 4x M2.5 screws
• 4x Nylon washers
• 1x Quickstart Guide
