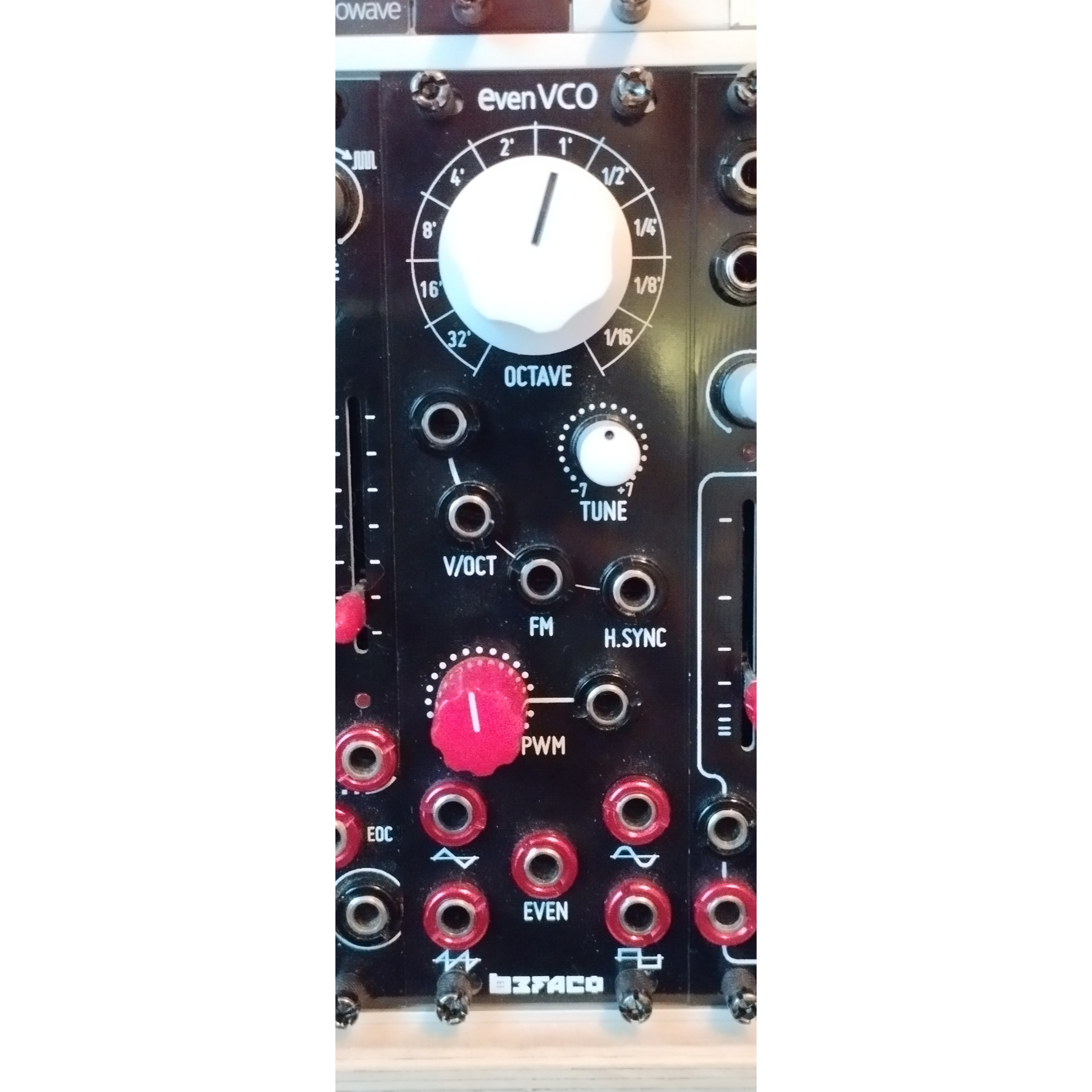

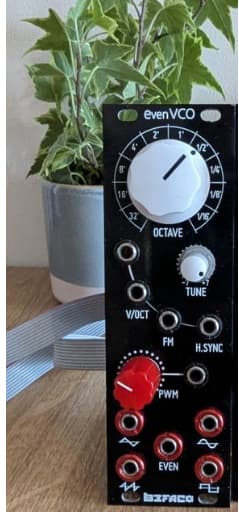

Befaco Even VCO

Ajouter ce produit à
  • Mon ancien matos
  • Mon matos actuel
  • Mon futur matos
Déposer un avis
Où acheter Even VCO ?
Moins
  • Neuf (1 offre)
  • Occasion
Meilleur prix neuf
Voir plus d’offres
Il n’y a pas de petite annonce pour ce produit.
Alerte nouvelle annonce
Déposer une annonce

Fiche technique

Créée le 19/11/2015

Voltage controlled oscillator (VCO) with great precision, designed to be stable even in the case of power supply fluctuations.Supplied with an octave selector of 10 positions from 32′ to 1/16′ (C0~C9).
It’s able to track with a precision of 1 Cent from C0 to C7, 4 Cents in C8 and 13 Cents in C9.
Outputs:
Triangle
Ramp
PWM
Sine
Even (waveshape with emphasis on even harmonics)

Inputs:
Hard sync. This forces the core to down in the event of change to zero of the input
V/oct. Two inputs for pitch control summed to the main octave selector and the tone control.
FM. Linear pitch control.
PWM CV. Pulse width control summed to the potentiometer.

Power drain:
+12V – 36mA
-12V – 26mA
Size:
8HP / 47mm Depth.

»

Vidéos
