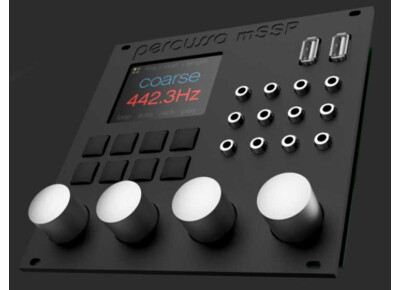

Percussa mSSP

• Fabricant : Percussa
• Modèle : mSSP
• Catégorie : Modules générateurs pour synthés modulaires
• Fiche créée le : 26/11/2018

Version compacte du Processeur de signal SSP au format Eurorack

• 8 inputs via high end AKM ADC with 32 bit resolution supporting sample rates of 192kHz, 96kHz and 48kHz (AK5558)
• 4 outputs via high end AKM DAC with 32 bit resolution supporting sample rates of 192kHz, 96kHz and 48kHz (AK4454)
• DC coupled inputs and outputs, eurorack voltage compliant (-5V to +5V)
• All inputs and outputs support any signal type (audio, control, gate, trigger, etc)
• Low-noise power supplies and op-amp stages, featuring 0.1% resistors

DSP Processing

• Quad core CPU running at 1.8 GHz per core with NEON SIMD parallel processing
• 32-bit floating point ADC/DAC input and output with 64-bit DSP algorithms
• Capable of running multiple DSP modules in parallel on multiple cores

Synthesis Engine

• Preloaded with 50 modular synthesis patches covering a wide range of synthesis techniques and audio processing methods (half of the patches are chosen by Percussa with the other half to be voted on by backers)
• Custom DSP software with more than 25 built-in synth modules such as wavetable oscillators, granulars, samplers, filters and effects
• Patches can use combinations of many fundamental DSP modules allowing multichannel and multivoice architectures
• Supports loading your own WAV files into patch modules via USB flash drives (e.g. load your own samples in the wavetable oscillators, granular processors, samplers, etc)
• Modify, store and recall patch module parameters as presets (limited only by size of the USB stick)
• Storage and recall of presets and patches with the press of a button
• 100+ pre-recorded samples / wavetables with royalty free license for (m)SSP users
• Supports loading synthesis patches created on the SSP by Percussa or the SSP community

Development Kit / VST support

• Support to develop and load your own Linux/ARM VST plugins (requires linux knowledge and compiling code for Linux/ARM)
• Example Quad VCA VST plugin code written in C++ using the JUCE framework already available for download on github and ready to go, including documentation in the SSP forum

Display, Graphics and User Interface

• 320x240 pixel high contrast full colour IPS display (wide angle visibility)
• 4x High quality Aluminium Machined Knobs
• 4x Endless and Click-less High Quality Encoders
• 8x Industrial Temperature high quality Switches
• Shallow menu system (no menu diving)
• Large fonts for parameter display for instant readability
• Signal input / output Oscilloscope features

Connectivity

• 2 USB host ports supporting USB MIDI (MPE) controllers and USB flash drives (for storing samples, patches, presets and for loading software updates)
• Support for USB ethernet adapters for developers (see instructions in SSP forum)
• Serial linux console connector on back of PCB

On-board Storage

• 4 GB flash
• 2 GB RAM

Dimensions and Front Panel

• 26HP width, 3U in height
• 50mm depth behind front panel (estimated)
• 3mm thickness CNC machined aluminium front panel, brushed and black anodized
• Passive aluminium heatsink

Power

• 800mA @ +12V and 100mA @ -12V draw (estimated)
• Standard 10-pin eurorack power connector
• Premium low impedance eurorack power cable included
