Fiche technique
- Fabricant : Radikal Technologies

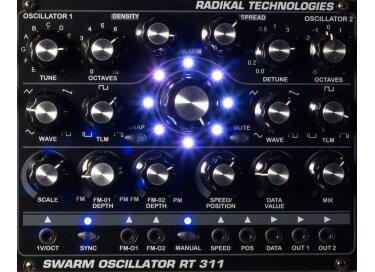

- Modèle : RT-311 Swarm Oscillator
- Catégorie : Modules générateurs pour synthés modulaires
- Poids du colis : 946 g
- Autres dénominations : rt 311 swarmoscillator, rt311swarmoscillator, rt311 swarmoscillator, rt311 swarm oscillator, rt 311swarm oscillator
two oscillators that can both build swarms of (up to eight) oscillator ‘clones’ capable of being pitched in musical intervals, chords, clusters, or fat detunes, dutifully backed by having all parameter settings saveable as interpolatable snapshots, enabling even more radical results
TUNE, OCTAVES, DENSITY, SPREAD, and DETUNE controls to create pitched musical intervals, chords, clusters, or fat detunes does not necessarily mean that all 16 of those clones have to sound simultaneously.
In Manual Mode, can function much like any other Eurorack-compatible all-analogue oscillator out there with OSCILLATOR 1 and OSCILLATOR 2 respectively appearing at the two (OUT 1 and OUT 2) outputs as sound sources for further manipulation elsewhere
both banks of oscillators feature WAVE controls for smooth transitions between waveforms and TLM (Timelinearity Modulation), a variation of pulse-width modulation — known from Radikal Technologies’ SPECTRALIS 2 ANALOG SYNTHESIZER/ BEATMATRIX/FILTERBANK desktop hybrid — that can be applied to all waveforms, while exponential FM (Frequency Modulation) and linear FM modulation or PM (Phase Modulation) are also available alongside oscillator synchronisation. Pitch is, of course, controlled by the (calibrated) 1V/OCT input (which can be quantised so that only pitches of a certain tone sequence or scale are output).
In Snapshot Mode, store up to eight memory setups, each with eight snapshots, saving all oscillator settings and memorising them even after whatever Eurorack small-format modular synth system is playing host to the module has been powered down! Such snapshots are assigned to one of eight positions accessible via the ‘big knob’ dominating the RT-311 SWARM OSCILLATOR’s front panel.
in Interpolator Mode everything (literally) revolves around the cyclic traversal of those snapshots, smoothly crossfading from one to the next with transitions taken care of via voltage control, an internal LFO (Low Frequency Oscillator), or the big knob itself — either way, the surrounding eight LEDs (Light Emitting Diodes) illuminate accordingly in user-chosen colours, helpfully highlighting which snapshot is playing at any given time.
