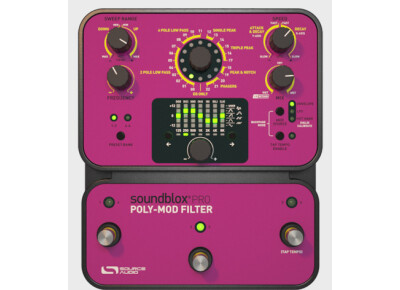

Source Audio Soundblox Pro Poly-Mod Filter

General

• Model Number: SA-144
• Bypass: Active Analog
• Number of Presets: 6
• Controls:
  • Sweep Range: adjusts the direction (up/down) and breadth of the filter sweep or the depth of the LFO and Hot Hand modulation.
  • Frequency: adjusts the center frequency of the filter
  • Speed: Controls the attack and decay speed of the envelope follower, the LFO speed, or the motion-sensitivity of the Hot Hand
  • Mix: adjusts the ratio of clean to wet signals
  • Effects: EQ Only, 2 Pole Low Pass, 4 Pole Low Pass, Single Peak, Triple Peak, Peak & Notch, and Phasers
  • Equalizer 7-Band: 125, 250, 500, 1k, 2k, 4k, 8k Hz (+/- 12 dB)
• Buttons: Preset Bank, Mode Source (Enveloppe / LFO / Hot Hand), Tap Tempo Enable
•  Footswitches:
  • Left: Preset 1 or 4
  • Middle: Preset 2 or 5
  • Right: Preset 3 or 6 / Tap Tempo
•  Connectors:
  • Inputs:
    • Guitar In
    • EXP In for use with an expression pedal
    • Sensor In to connect the Hot Hand
    • MIDI In: MIDI program and continuous control input. Connect to a MIDI output with a standard MIDI cable
  • Outputs:
    • Guitar Out to plug the next pedal or the amp
    • Sensor Out allows daisy chaining of multiple Hot Hand devices
  • Power: 9V DC

Technical Data

• 24 bit A/D- D/A converters
• 56-bit processing
• Power: 9V DC (negative center)
• Current Draw: 110 mA (145 mA max with Hot Hand Wireless Adapter)
• Dimensions (LxWxH): 7 x 6 x 2 inch
• Weight: 1.75 lbs
