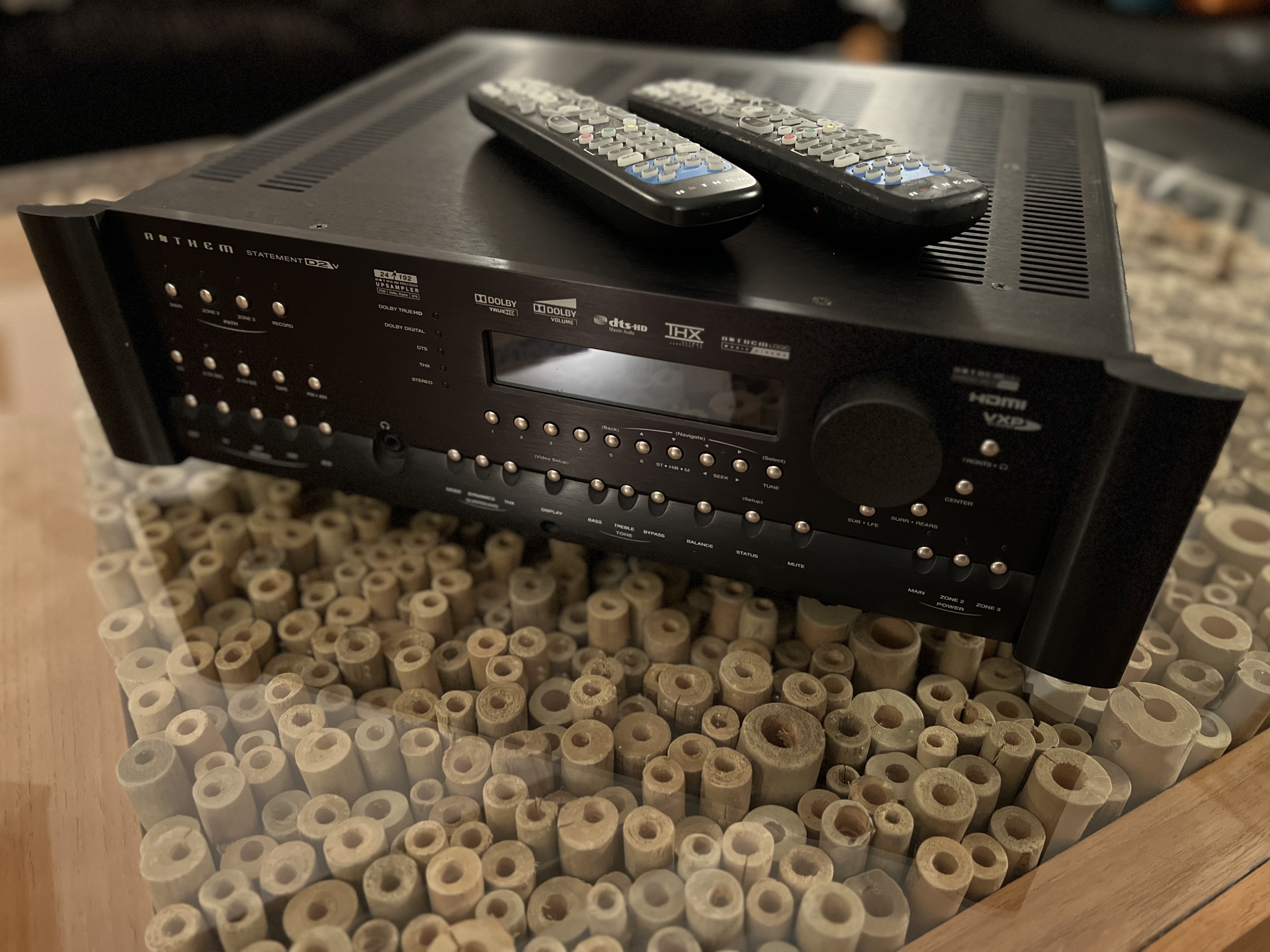

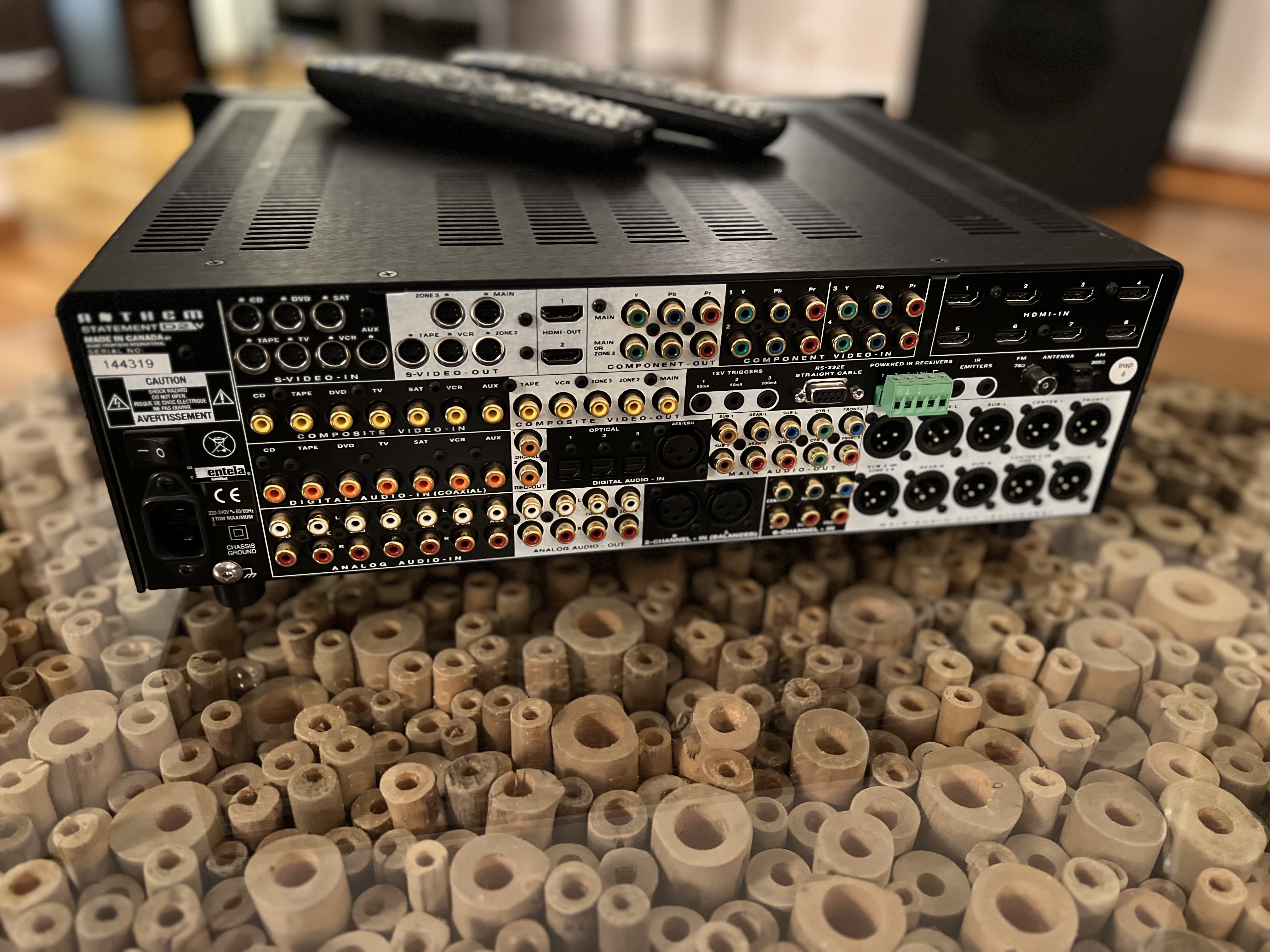

Pre ampli ANTHEM D2V

Description

VIDEO SWITCHING
Bandwidth from input to output jack (bypass mode for component video)
Composite and S-Video 70 MHz
Component Y 110 MHz
Pr 90 MHz
Pb 80 MHz
All analog video inputs and outputs are 75 Ω, 1.5 Vp-p.
ANALOG AUDIO
Input Impedance 20 kΩ
Output Impedance Main-RCA 300 Ω
XLR 600 Ω
Zones 2/3 and Record 51 Ω
Rated Input 2.0 Vrms
Maximum Input 5.3 Vrms
Minimum Load 5 kΩ
Rated Output (100 kΩ load) 2.0 Vrms
Maximum Output RCA 6.3 Vrms
XLR 12.6 Vrms
Headphone Output 100 mW into 32 Ω at 0.2% THD+N
Volume Control Range Main - 95.5 dB to +31.5 dB (in 0.5 dB increments)
Zone 2/3 and Headphone - 62.5 dB to +10.0 dB (in 1.25 dB increments)
Crosstalk (at 1 kHz) 82 dB between channels; 86 dB between inputs
XLR Pin Configuration Pin 1: Ground, Pin 2: Positive, Pin 3: Negative
DIGITAL AUDIO
Crossover High-Pass Slope (small speaker setting) 12 dB/octave (2nd order)
Low-Pass Slope (subwoofer) 24 dB/octave (4th order)
Frequency (adjustable) 25 Hz to 160 Hz (in 5 Hz increments)
Tone Control Fliter Type Shelf
Range +/- 12 dB
Bass Turnover Frequency 200 Hz
Treble Turnover Frequency 2 kHz
Analog-to-Digital Conversion S/N Ratio (at digital Rec output) (IEC-A Filter) 100 dB
All digital audio inputs and outputs comply with HDMI, S/PDIF or AES/EBU standards. Sample rate converter output is 24 bit/192 kHz regardless of input.
MAIN PATH (RCA and XLR Outputs)
Frequency Response and Bandwidth Analog Direct Inputs 10 Hz to 20 kHz (+0 -0.2 dB), 1 Hz to 130 kHz (+0 -3 dB)
Analog-DSP Inputs at 24/96 10 Hz to 20 kHz (+0 -0.3 dB), 2 Hz to 44.1 kHz (+0 -3 dB)
Digital Inputs at 24/96 10 Hz to 20 kHz (+0 -0.2 dB), 1 Hz to 45 kHz (+0 -3 dB)
THD+N (at Rated Input and Output) Analog Direct Inputs 0.006% (80 kHz BW)
Analog-DSP Inputs at 24/48 or 24/96 0.004% (AES17 Filter)
Digital Inputs at 24/48 or 24/96 0.004% (AES17 Filter)
IMD (CCIF at 15 kHz and 16 kHz) Analog Direct Inputs
