Fiche technique
- Fabricant : Taurus

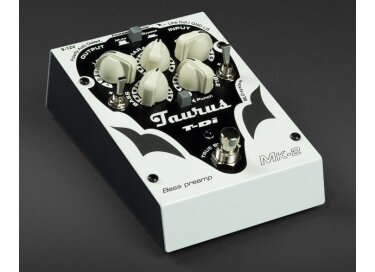

- Modèle : T-Di MK-2
- Série : Silver Line
- Catégorie : Préamplificateurs basse pédales
- Autres dénominations : t dimk 2, tdimk2, t di mk2, tdimkii, t di mkii, t dimk2, tdimk2, t di mk 2, t di mkii, t dimkii, tdimkii
can also be used as a booster for your amplifier
bass and treble knobs
proprietary MLO System installed in all Taurus Bass amps ensures an optimal mid frequencies proportion, depending of both bass and treble knobs positions. ALso ensures the same level of the output volume despite of how far the low frequency control knob is positioned
. INPUT - mono 1/4" (jack) 2. OUTPUT - mono 1/4" (jack)
-
POWER SUPPLY INPUT - DC 9-12V Polarity supply auto detection/ connector domensions 5,5x2,1mm.
DC ASSISTANT - protects from loss of signal. Effect switches automatically to the "bypass mode" in case of disconnection or
low voltage of DC supply (<6V).
-
LEVEL- knob controls overall effect volume
-
CHRACTER “Blend knob” between “Vintage” & “Modern”sound.
-
GAIN - input gain preamp adjustment.
-
BASS - low frequency level control with MLO system.
-
Triple BASS-switch to reduce or boost low frequency CUT/OFF/BOOST
-
TREBLE - high frequency level control with MLO system.
10. Triple TREBLE-switch to reduce or boost high frequency CUT/OFF/PRESENCE 11. PUNCH - midrange effectiveness switch.
12. Footswitch Mode - bypass/mute footswitch mode selector
- footswitch mode “Mute” - mutes signal at the output. Usefull when works as a Di-box connected to mixer.
- footswitch mode „Bypass”- switches between ON and BYPASS. Usefull when works as a effect connected to amplifier.
13. Footswitch. If it’s turned off true-bypass is active.
14. OUTPUT - XLR - mixing console connection (balanced) 15. Effect „ON” indicator
16. Ground lift switch.
