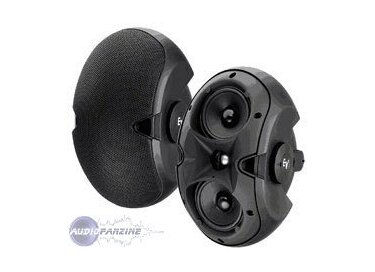

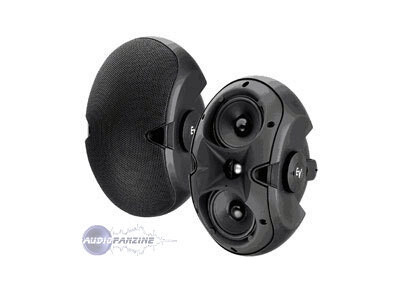

Argus du Electro-Voice Evid 3-2
Avertissement
Attention, cette cote argus a plus de 6 mois.
Les prix indiqués dans les petites annonces des particuliers sur Audiofanzine ne sont pas nécessairement les véritables prix de vente ou d'achat.Les annonces avec options, ou constituant un pack, ne sont pas prises en compte.
Où acheter Evid 3-2 ?
Moins
Il n’y a pas de petite annonce pour ce produit.
Fiche technique
- Fabricant : Electro-Voice
- Modèle : Evid 3-2
- Série : Evid
- Catégorie : Enceintes pour installations
- Poids du colis : 4.4 kg
- Autres dénominations : evid 3 2, evid32, evid3 2
Ultra compact, two-way full-range system with an appealing design, lightweight, also
for outdoor use, with a high-quality 70/100V - transformer
• 2 x 3.5’’- mid-bass-driver with a moisture-resistant special membrane in a
vented enclosure
• 0.75’’-titanium dome tweeter with Neodymium magnet structure
• symmetrically located HF-section with Coherent Coverage Waveguide TM in
combination with physically shaded woofers for minimized vertical lobing
effects and improved vertical off-axis frequency response
• integrated crossover with passive limiter for the LF-chassis and the HF-driver
• the system is magnetically shielded and can be used near screens and
monitors without any disturbances in the display
• transformer taps: 70V: 5W, 100V: 10W
• ellipsoid enclosure constructed of acrylic butyl styrene (ABS)
• black ABS enclosure (the ABS has to be imbued to prevent changes to the
colour in case of scratches)
• moisture- and weather-resistant to MIL-Spec 810, IEC 529 and IP 34 test
conditions
• full-face protected by a powder-coated, zinc-plated grille, backed with acoustic
fleece for the prevention of dust and moisture
• including robust, multi-axial Strong Arm Mount (SAMTM )
• horizontal swing: 100°; vertical rotation: +/-45° (if the speaker is mounted with
the long axis in the vertical plane)
• mounting bracket allows nearly invisible mounting, the final position can be
fixed with two hexagon head screws
• additional safety point on rear side
• spring terminals for cable cross sections up to 4 mm²
Technical specifications:
Frequency response
(-10dB)
85 Hz to 20 kHz
Nominal coverage (-6 dB) 120°H x 100°V
Maximum long-term average power-
handling capacity (per IEC 268-5)
10 W / 100 V
5 W / 70 V
Sensitivity (1W/1m), 87 dB
Max. SPL (calc., full space) (1m) 97 dB
Dimensions (W at front x H x D) max. 127 x 234 x 165 mm
for outdoor use, with a high-quality 70/100V - transformer
• 2 x 3.5’’- mid-bass-driver with a moisture-resistant special membrane in a
vented enclosure
• 0.75’’-titanium dome tweeter with Neodymium magnet structure
• symmetrically located HF-section with Coherent Coverage Waveguide TM in
combination with physically shaded woofers for minimized vertical lobing
effects and improved vertical off-axis frequency response
• integrated crossover with passive limiter for the LF-chassis and the HF-driver
• the system is magnetically shielded and can be used near screens and
monitors without any disturbances in the display
• transformer taps: 70V: 5W, 100V: 10W
• ellipsoid enclosure constructed of acrylic butyl styrene (ABS)
• black ABS enclosure (the ABS has to be imbued to prevent changes to the
colour in case of scratches)
• moisture- and weather-resistant to MIL-Spec 810, IEC 529 and IP 34 test
conditions
• full-face protected by a powder-coated, zinc-plated grille, backed with acoustic
fleece for the prevention of dust and moisture
• including robust, multi-axial Strong Arm Mount (SAMTM )
• horizontal swing: 100°; vertical rotation: +/-45° (if the speaker is mounted with
the long axis in the vertical plane)
• mounting bracket allows nearly invisible mounting, the final position can be
fixed with two hexagon head screws
• additional safety point on rear side
• spring terminals for cable cross sections up to 4 mm²
Technical specifications:
Frequency response
(-10dB)
85 Hz to 20 kHz
Nominal coverage (-6 dB) 120°H x 100°V
Maximum long-term average power-
handling capacity (per IEC 268-5)
10 W / 100 V
5 W / 70 V
Sensitivity (1W/1m), 87 dB
Max. SPL (calc., full space) (1m) 97 dB
Dimensions (W at front x H x D) max. 127 x 234 x 165 mm
