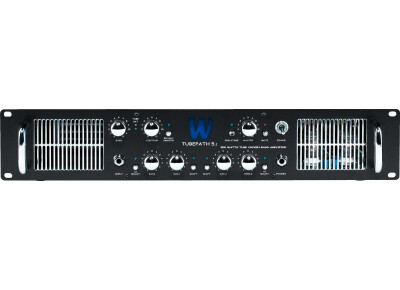

Warwick TubePath 5.1

• Fabricant : Warwick
• Modèle : TubePath 5.1
• Série : Tubepath
• Catégorie : Têtes d'amplis Basse
• Fiche créée le : 29/06/2005

Input: 25 mV
Tubes: 2x ECC 83 / 1x EL84 (2nd Stage)
Poweramp: fan cooled (temperature controlled)

Gain:
Green LED Indicates the optimal level for clean sound
Orange LED Indicates the tube saturation for crunch
sound.

Equalizer:
Low ±12dB @ 80Hz
Low Mid 1 ±10dB @ 180Hz
Low Mid 2 ±10dB @ 320Hz
Hi Mid 1 ±11dB @ 600Hz
Hi Mid 2 ±11dB @ 1,1kHz
Hi ±13dB @ 9kHz
Low Boost +8dB @ 50Hz
Hi Boost +13dB @ 18kHz

Contour:
Smooth 0dB @ 50Hz /
-16dB @ 300Hz /
+12dB @ 16kHz
Rough +2dB @ 100Hz /
-16dB @ 1,1kHz /
+8dB @ 18kHz

Switches (FS-Foot Switch): Contour Rough / Smooth (FS), 2nd Stage (FS), Low
Boost, High Boost, 2 x Mid shift, Mute

Headphone: 200 ohms min.
Direct Out: 0dB, 600 ohms

Effects Loop:
mono parallel
send 0dB, 600 ohms
return 0dB, 10k ohms

Switches: Rear Groundlift, DI pre / post

Speaker Out:
jack (TubePath 5.1 only) and lockable coaxial
500 W / 4 ohms (TubePath 5.1)
1.000 W / 4 ohms (TubePath 10.1)

THD: < 0.1 %

Weight:
17.7 kg (TubePath 5.1)
21.5 kg (TubePath 10.1)

Dimensions: 19" / 483 x 90 x 410 (w*h*d)
