Fiche technique Decibel Eleven Hot Stone SM

  • Fabricant : Decibel Eleven
  • Modèle : Hot Stone SM
  • Catégorie : Alimentations pour pédales
  • Fiche créée le : 12/07/2012

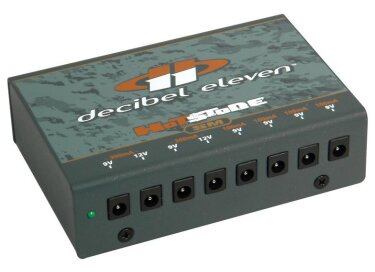

The Hot Stone SM includes 6 isolated and regulated outputs including two high current outputs to satisfy the high current power demands of the latest digital guitar pedals.

Features

  • 6 Isolated outputs – no hum or interaction between pedals.
  • 8 total available outlets – all can be used simultaneously.
  • Toroidal Transformer with additional magnetic shielding – no stray magnetic fields.
  • Short circuit protection on all outlets – cable shorts won't harm outputs.
  • 2 300mA sections at 9 and 12VDC – capable of powering Eventide, Strymon, TC Electronic Nova, Line6 modelers (4button), Boss Twin and more
  • Outputs can be combined for 18V or 24VDC* – for powering MXR Flanger or EHX Deluxe Memory Man and others
  • Heavy duty chassis with 2mm steel – built like a tank
  • All outputs capable of meeting full rated currents simultaneously without ripple – 1000mA total.
  • 5 year warranty

       * With voltage doubling cable


Specifications

Input
Detachable IEC line cord
120V 50/60Hz (North American model)

Outputs
All outlets: 5.5 x 2.1mm barrel connectors, center negative.
All outlets: regulated and filtered DC voltage.
All outputs: short circuit protected.

Outlet 1-2: 9V and 12V, 300mA
Outlet 3-4: 9V and 12V, 300mA
Outlet 5-8: 9V, 100mA each

Included Cables
(6) 5.5 x 2.1mm
(1) 5.5 x 2.5mm
(1) 3.5mm mini plug

Physical Dimensions & Weight
(W x D x H): 5.10" x 3.46" x 1.46"
Weight: 2 lbs.
»
