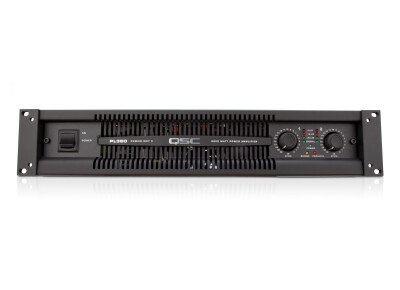

PL380, Ampli de sono 2 canaux de la marque QSC appartenant à la série Powerlight 3.
OUTPUT POWER PER CHANNEL, STEREO MODE, both channels driven | |
8Ω EIA 1 kHz 1% THD | 1500 W |
4Ω EIA 1 kHz 1% THD | 2500 W |
2Ω EIA 1 kHz 1% THD | 4000 W* |
OUTPUT POWER, BRIDGE MONO MODE | |
8Ω EIA 1 kHz 1% THD | 5000 W |
4Ω EIA 1 kHz 1% THD | 8000 W* |
Typical Distortion (20 Hz–3 kHz, 3 dB below clip, or 20 Hz–5 kHz, 10 dB below clip, or 20 Hz–20 kHz, 20 dB below clip) 8 ohms 4 ohms 2 ohms |
0.01-0.03% 0.03-0.06% 0.1% |
Maximum Distortion (20 Hz–20 kHz, 1 dB below rated power) 4 to 8 ohms |
0.2% |
Frequency Response (8 ohms) | 20 Hz–20 kHz, ±0.2 dB |
Noise (20 Hz–20 kHz, 32 dB Gain) | -104 dB |
Dynamic Headroom (4 ohms) | 2 dB |
Damping Factor (8 ohms) | 200 |
Output Circuitry | Class D |
Input Sensitivity 26 dB Setting 32 dB Setting |
5.27V 2.67V |
Maximum Gain (1.2V setting) | 39.1 dB |
Maximum Input Level 1.2V setting 32 dBu setting 26 dBu setting |
10 V (+22 dBu) 22 V (+29 dBu) 25 V (+30 dBu) |
AC Power Requirements ** 120V 50/60 Hz 230V 50 Hz |
18 A 11 A |
Cordset 120V 50/60 Hz 230V 50 Hz |
NEMA L5-30P CEE 7/7 16A |
Chassis Power Connector All Voltages |
32A PowerCon |
Input Impedance | > 10 kΩ balanced, or unbalanced |
Cooling | Variable-speed fan, rear-to-front air flow |
Connectors (each channel) | Input: XLR Male, XLR Female and 3-pin detachable terminal blocks (1 each per channel) Output: Neutrik Speakon® (ch 1 wired to both channels) and 5-way binding posts DataPort: HD-15, input signal in parallel with XLR input connectors |
Front Controls | AC power switch Gain controls, 21 detents, 1 dB steps (each channel) |
Front Indicators (LED color) | Power (Blue) Bridged (Yellow) Parallel (Orange) Clip/Prot (Red × 2) Level -10 (Orange × 2) Level -20 (Green × 2) Signal -35 (Green × 2) |
Rear Controls (with LED indicators) | Input Mode: Bridge (Yellow), Stereo (Green), or Parallel (Orange) Gain / Sensitivity: 26 dB (Orange), 32 dB (Green), or 1.2V (Yellow) High Pass (each channel): 3 Hz (Off), 30 Hz (Yellow), or 50 Hz (Orange) Clip Limiter (each channel): Off, on (Yellow) |
Amplifier and Load Protection | Short circuit, open circuit, thermal, RF protection. On/off muting, DC fault shutdown, active inrush limiting |
Dimensions | Height: 3.5" (8.9 cm) 2RU Width: 19" (48.3 cm) Depth: 15.63" (39.7 cm) from front mounting rails |
Weight | Net: 24 lb (11 kg) Shipping: 33.5 lb (15.2 kg) |
Agency Approvals | UL, CE, RoHS/WEEE compliant, FCC Class B (conducted and radiated emissions) |
Source : http://www.qsc.com/products/Power_Amplifiers/Powerlight_3_Series/PL380/
