DAP-Audio QI-4600
Photos
1/1

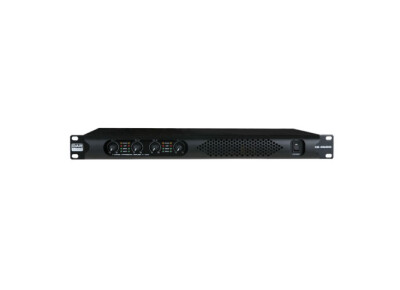

DAP-Audio QI-4600

Ampli de sono 4 canaux de la marque DAP-Audio appartenant à la série QI

Écrire un avis ou Demander un avis

Acheter neuf DAP-Audio QI-4600

  • Terre de Son En stock / Livré en 24h 549,00 €
  • Thomann En stock / Livré en 48h 552,00 €

Annonces QI-4600

Alerte nouvelle annonce

Fiche technique

  • Fabricant : DAP-Audio
  • Modèle : QI-4600
  • Série : QI
  • Catégorie : Amplis de sono 4 canaux
  • Poids du colis : 8.1 kg
  • Fiche créée le : 02/05/2016

The Qi-amplifier range is developed for installation use to create a perfect match with the Xi installation speaker range. Due to the rugged steel housing it can also be applied for mobile use. With only 1U it gives power for 4 channels. All 4 channels are individual controllable and bridge mode can be set for each stereo pair. With the SMPS and Class-D amplification it is a light weight solution with a high efficiency power consumption / power output ratio. An advanced protection circuit will protect the amplifier and it's connected speakers. It has a short circuit/ thermal, DC ,RF protection and a soft start system. The Qi-amplifiers are made with high-quality low deviation components to ensure a perfect sound quality and a long life time.



Output power
  • Stereo 4Ohm: 4x 600W
  • Stereo 8Ohm: 4x 360W
  • Bridge 8Ohm: 2x 1200W

Parameters
  • S/N Ratio: >90dB
  • Input sensitivity: 0,775V
  • Input impedance: 20kOhm Bal./10Kohm unbal.
  • Technology: Class-D
  • Protection: short circuit, DC, RF, Soft start
  • Cooling: Temp controlled fan
  • Power supply: SMPS

Connections
  • Input: 4x XLR
  • Output: 4x Speaker connector
  • Power: IEC

Physical
  • Dimensions: 388 x 435 x 44 (WxHxD)
  • Installation depth: 370 (excl. conn.)
  • Weight: 6Kg

Electrical
  • Input Voltage: 100~240VAC...50/60Hz
  • Power consumption: 1100W
»
