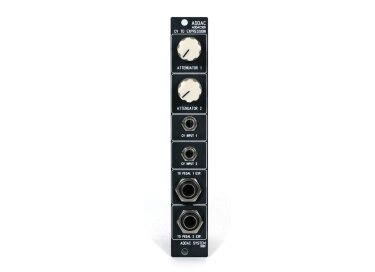

ADDAC System ADDAC309 CV to Expression

ADDAC309 CV to Expression allows a simple and straight forward connection between modular and effects pedals that features expression pedal TRS inputs.

Instead of using an expression pedal into the effects pedal the user can use this module in between a CV source and the Effects pedal to be controlled.
This is a great way to control the available parameters on the effects pedals straight from a CV source.

ADDAC309 features 2 channels each with a CV Input with attenuator and a 1/4" jack output.

This is a passive module. The power needed for operation is taken from the pedal power instead of the modular frame, allowing for perfect matching of the pedal’s operating voltage, which can range from 3.3V to 9V.

Tech Specs :
4HP
3,5cm deep
Passive module
