Fiche technique
- Fabricant : Erica Synths
- Modèle : Black 8-Multi
- Série : Black
- Catégorie : Autres modules pour synthés modulaires
- Poids du colis : 123 g
- Autres dénominations : black8multi, black8 multi, black 8multi
1 to 8 or 1 to 4 x2 buffered multiple with signal status LEDs. Use it for CV, audio and clock signals.

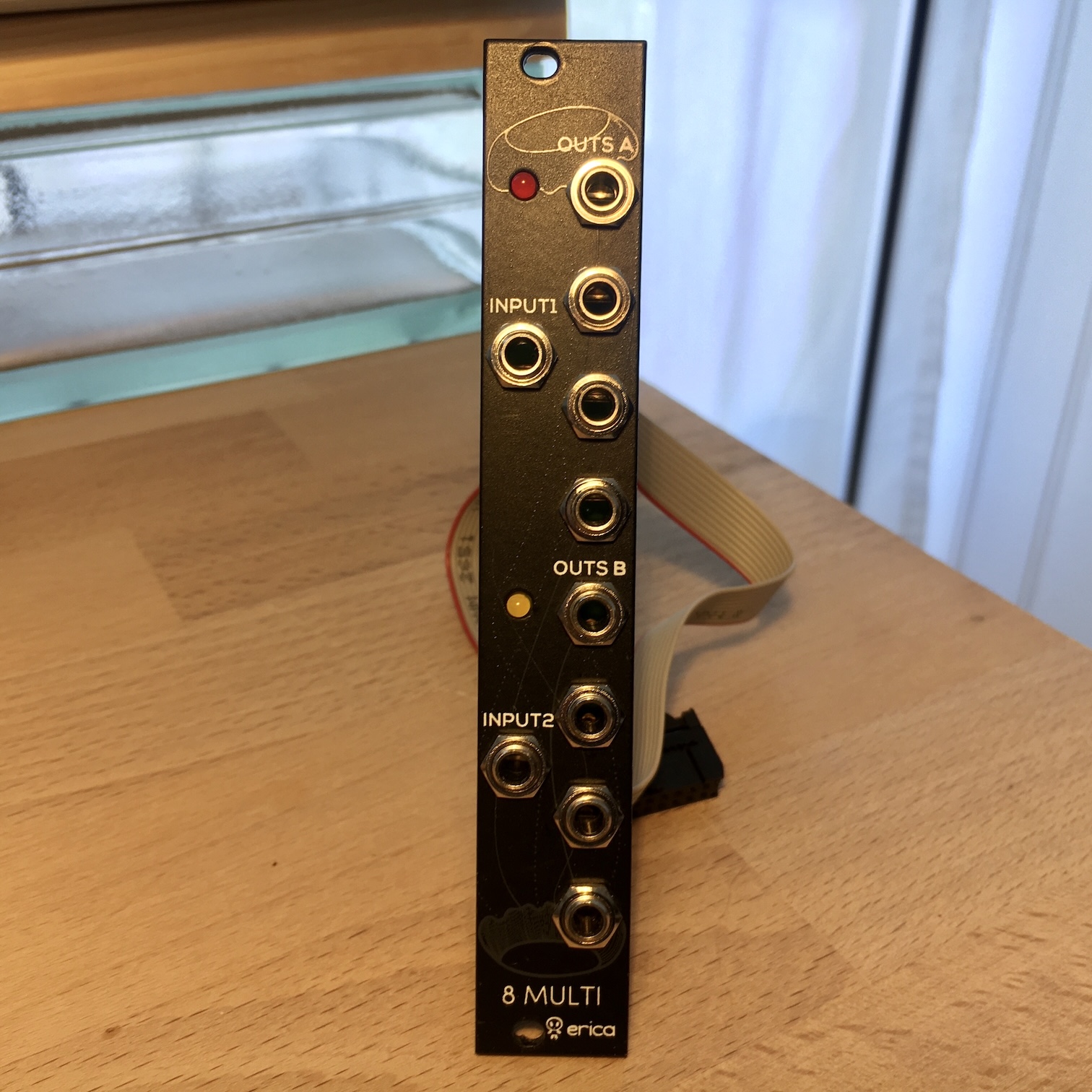

The Erica Black 8-Multi is advanced replacement for stackable patch cables - it's active buffered multiple, with signal status LEDs. Use it for splitting CV, audio and/or clock signals without interference among output signals and loosing signal strength!
Features:
- One input multiple to eight buffered outputs
- Two input multiple to four buffered outputs
- LEDs for activity indication
- DC coupled inputs/outputs
- Works with audio & CV & clock
- Inputs/outputs are protected against over-voltage
- Diode protection on reversed power supply
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.
Technical specifications:
|
Input signal level |
-10V – +10V |
|
Power consumption |
+25mA, -15mA |
|
Module width |
6HP |
|
Module depth |
25mm |
