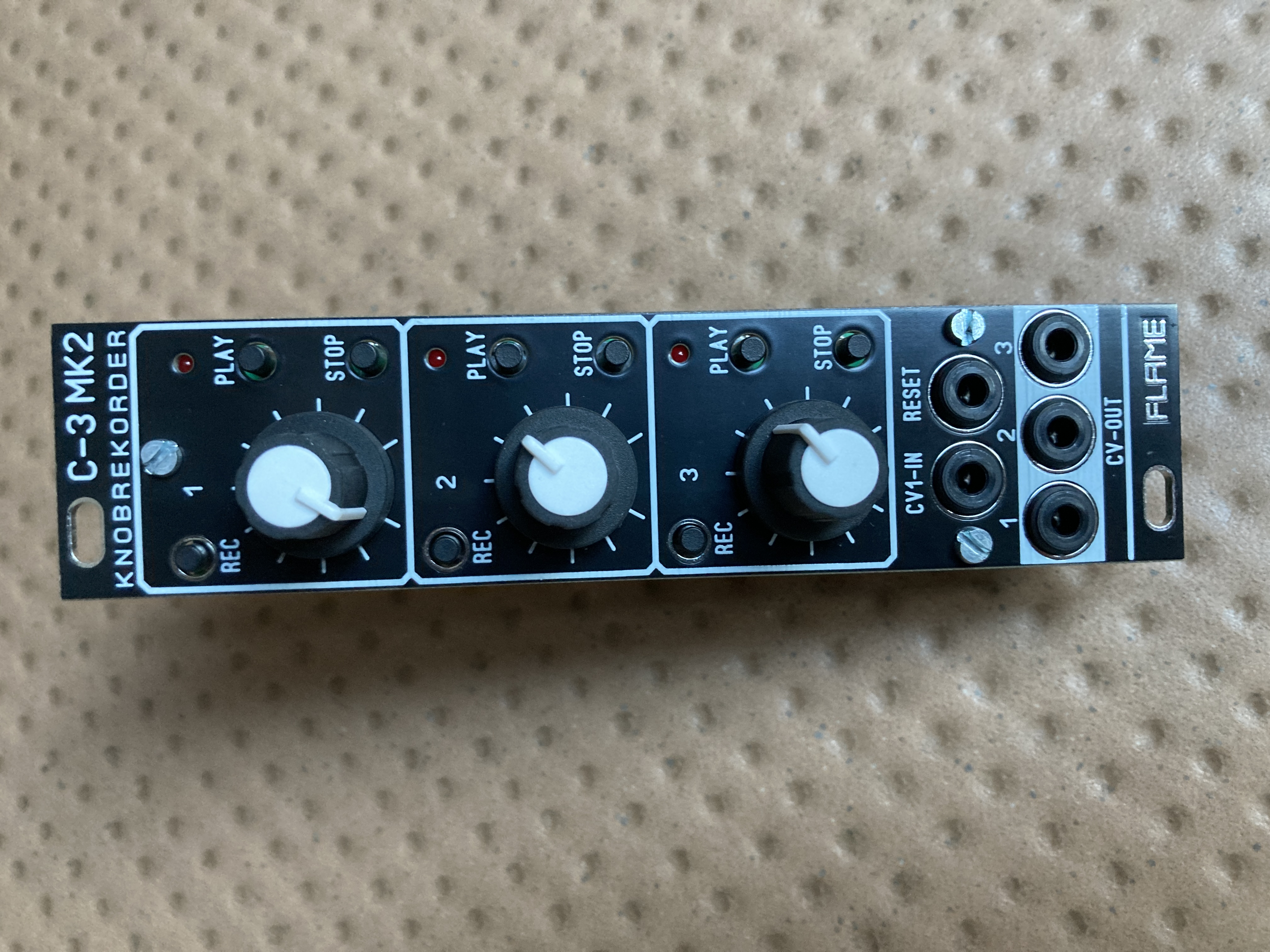

Flame Audio C-3 Knob Recorder

The C3 module is a three-channel module for recording and playing back movements of controllers. Those can be recorded with each channel´s individual knob. The movements will be output as control voltages. The record time amounts to 102 seconds maximal. The track can be played once only (one shot) or in loop. The speed of the play back or the output offset is controllable with the pot. Track one has an additional CV input. The pot 1 can be used here like an offset ruler. All three tracks have a common reset input. All track data can be stored in internal non-volatil memory and will be reloaded after power on. Software updates are possible via backward USB connector.


Connections:
Ribbon cable adapter for Doepfer bus +/-12Volt
Inputs: 1x CV (0..+10V), 1x Reset (0/+5..10V), 1/8th inch mono jacks
Outputs: 3x CV (0..+10V), 1/8th inch mono jacks
Control elements:
10 push buttons
3 knobs for CV, speed, offset
3 LED’s
Resolutions: AD/DA converter: 12bit, Sample rate: 50Hz or 100Hz
Current consumption: + 102mA / - 12mA
Size: Euro rack format 3U / 6HP 30x128,5x33 mm
