Fiche technique
- Fabricant : LiveStock Electronics

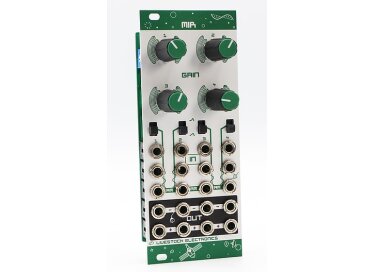

- Modèle : Mir
- Catégorie : Autres modules pour synthés modulaires
- Fiche créée le : 10/10/2016
Module de mixage, inversion et VCA pour synthés Eurorack
four 2:1 mixing VCA's with uninverted and inverted output.
Use this module to mix Gates, CV's and Audio, as a signal inverter, as a VCA for modulating amplitude or, as a logic gate.
Mir comes along with an expansion module, which gives you the option to change the amount of cv input and whether the VCA responds linear or exponentionally. Place the expansion board anywhere you like, you can also set the parameters on the pcband leave the expansion board out if you need to save some hp.
Specs:
MIR:
3U/6HP
48mA @ +12V / 45mA @ -12V
EXPANSION:
3U/4HP
0mA @ +12V / 0mA @ -12V
»
