Publié le 12/03/18 à 12:23Fiche technique
- Fabricant : Mos-Lab
- Modèle : 960
- Catégorie : Autres modules pour synthés modulaires
- Fiche créée le : 06/03/2018

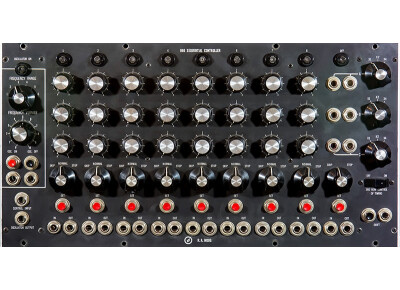

960 SEQUENTIAL CONTROLLER
Clock oscillator Frequency range : 0.1Hz to 500Hz. 1V/octave response.
Output Voltage Levels:
-
Range X1 : 2V max.
-
Range X2 : 4V max.
-
Range X4 : 8V max.
selector mode switches provide a real-time Reset position on the first position. This Reset mode position (unmarked) causes the sequencer to reset to stage 1 when selected.
Power: +15V / 150mA, -15V / 40mA
(Dotcom power connector)
VERSION A have the same specifications than Moog 960
VERSION B have a dual gate bus in addition to the Version A specifications.
Source : Mos-Lab
